SICOLAB - Hangszigetelt munkaállomások

Cikkszám: Dürr Technik SICOLAB Silent Compressor for Laboratories
Gyártó: Dürr Technik GmbH & Co. KG
Elérhetőség: Előrendelhető

Leírás és Paraméterek

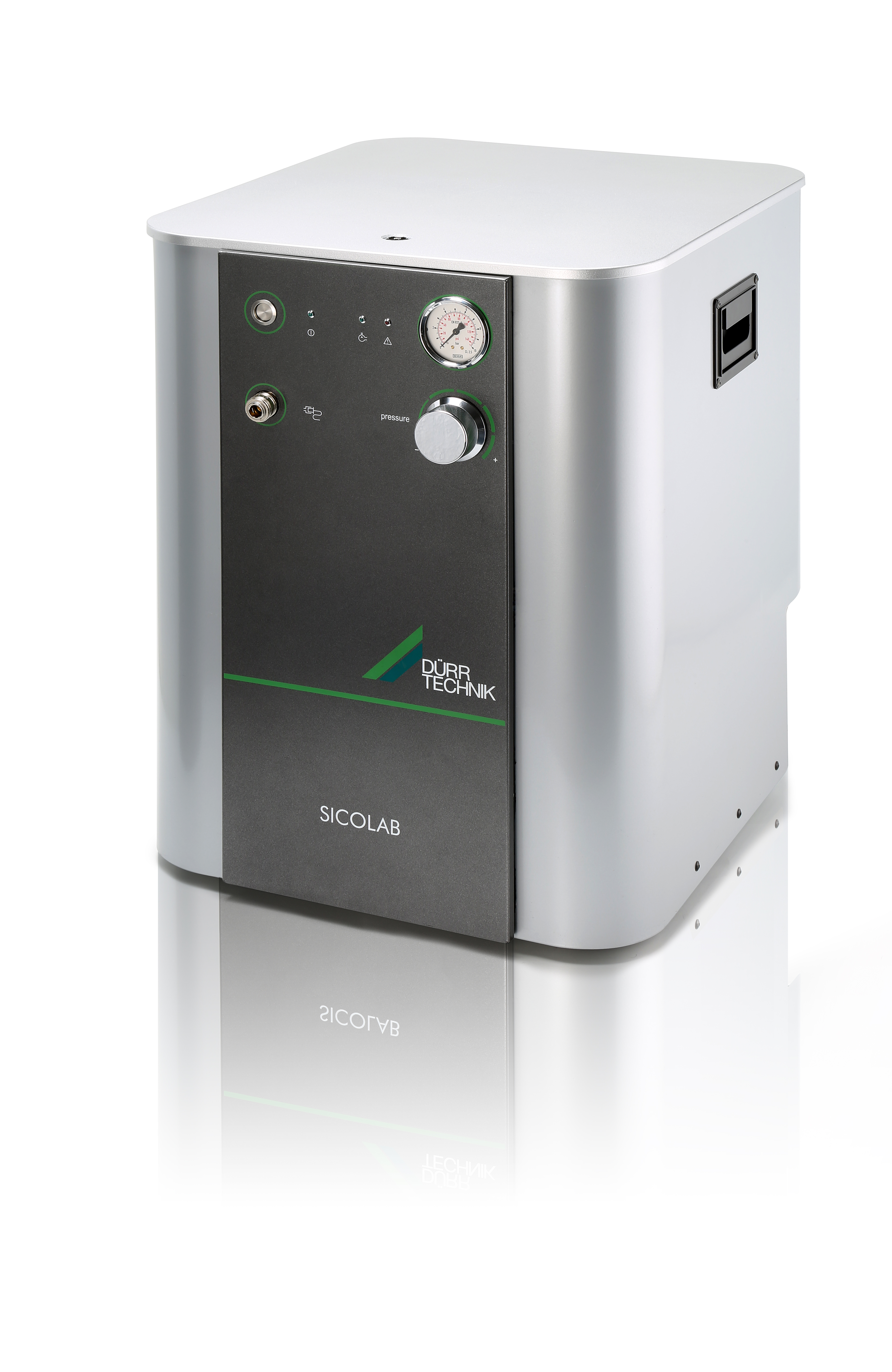

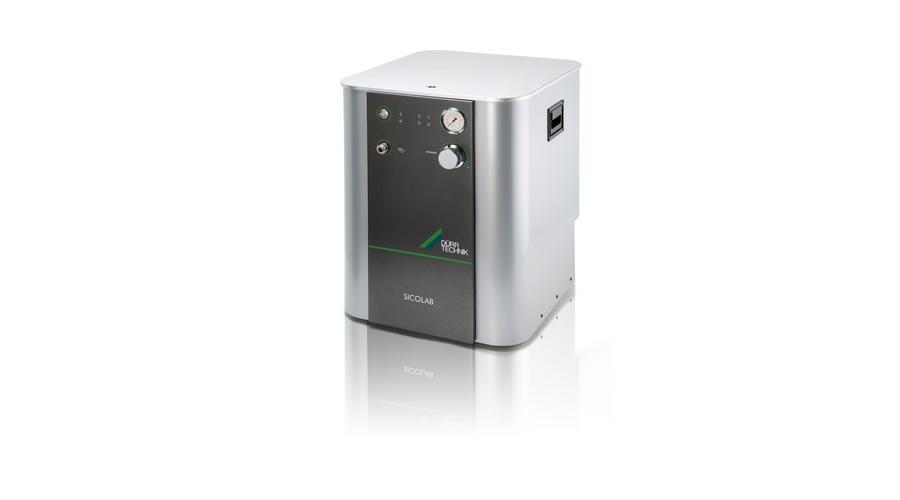

SICOLAB - Silent Compressor for Laboratories

The versatile compressor station for laboratories and clean rooms
silent – compact – mobile

The SICOLAB oil-free compressor system was conceived by Dürr Technik, specifically to be stored and used at the technician’s workbench. This is now possible, due to its extremely quiet, vibration free operation, and the compact size.

The SICOLAB has an appealing, modern look, which perfectly complements other equipment in the laboratory. Its space-saving design allows it to fit neatly under the laboratory desk, while the sound-dampening cabinet substantially reduces noise. The system features an intuitive user interface and a simple plug-and-play operation. SICOLAB is highly mobile due to swivel-wheels and carrying handles. All SICOLAB models are suitable for 100% continuous running.

SICOLAB – all advantages at first glance

  • Ultra quiet

  • Low-vibration

  • Compact to fit under the lab desk

  • Modern design

  • Plug-and-Play thanks to the quick-connect outlet

  • Adjustable outlet pressure simply set the desired pressure up to 8 bar (116 psi)

  • Sterile filter (optional) filtration grade 0,01 µm

  • Activated carbon filter (optional) removes odor and other impurities from the compressed air

  • Mobility - swivel wheels

  • Endurance - designed to run even at 100 % duty-cycle

  • Automatic condensate evaporator - elimination of manual drainage

  • Air tank with anti-bacterial and anti-corrosion coating

  • Recessed handles

  • Secondary rear panel outlet connection

  • Very long service life

  • Membrane dryer 100 % duty-cycle (optional)

  • Maintenance-free - easy-to-replace filter

Fields of application for compressed air in the laboratory

  • Auto-samplers

  • Nitrogen generators

  • Gas generators

  • Lab tests

  • Laboratory automation

  • Automatic picking systems

Anti-bacterial coating for the interior tank

Our air tanks feature a proprietary internal, anti-bacterial coating.
When the application requires dry air,an optional membrane dryer can be integrated with the system. With this option, the system generates consistently dry, compressed air even at 100 % duty-cycle - perfection made by Dürr Technik.

Membrane dryer

  • Economical purge air consumption for improved energy efficiency

  • Patented pressure limitation valve for optimizing the starting process

  • Flexible: dew point is adjustable to meet the application requirements

Compressed air specification

  • Maximum operating pressure 10 bar (145 psi)

  • Dew point recuced by up to 60 K (108 °Ra)

  • Air quality according to ISO 8573-1 up to class 1:3:1

Ambiant conditions

  • Relative humidity up to 95%

  • Operating temperature range from 5°C to 40°C (41 °F to 104 °F)

Options

  • Membrane dryer

  • Sterile filter 0.01µm

  • Activated carbon filter

  • Spiral coiled hose with compressed air gun

  • Spezial voltages on request

Your benefits

  • Low noise

  • Compact design

  • Plug-and-Play

  • 100 % duty-cycle

  • Oil-free

  • Low-vibration

  • Very long service life

  • Large variety of versions
