Leírás és Paraméterek
Ordering Information :
◆ 167440-11(22)

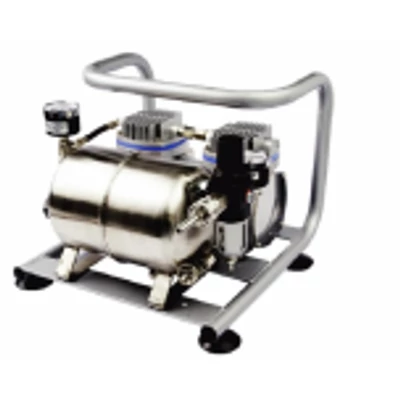

Rocker 440 Air Supply System, AC110V, 60Hz (AC220V, 50Hz)
Specification (110V, 60Hz)
◆ Max. power： 147 W
◆ Max. current：1.5 A
◆ Max. pressure： 40-60 psi
◆ Max. flow rate： 27 l/min
◆ Noise level： 50.0 dB
◆ Horse power： 1/6 HP
◆ Net wet： 5.2 kg
◆ Port thread： Quick coupling
Specification (220V, 50Hz)
◆ Max. power： 125 W
◆ Max. current：0.6 A
◆ Max. pressure： 40-60 psi
◆ Max. flow rate： 25 l/min
(w/o air storage bucket)
◆ Noise level： 50.0 dB
◆ Horse power： 1/6 HP
◆ Net wet： 5.2 kg
◆ Port thread： Quick coupling
Features :
◆ No air pollution, maintenance free
Rocker series pumps are driven by Piston, no need for lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Quiet and low vibration
Driven direct by motor with no additional belt-driven transmission; the quality vibration-proof assembly makes Rokcer series run at the lowest noise level among all other equivalent pumps.
◆ Thermal protection device
Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then restart it when the temperature cools down.
◆ Air outlet filter cartridge
Every Rocker series pump is equipped with moisture trap in air outlet to filter particle, moisture and prolong the product life.
◆ 2.5 liters air storage bucket
Air storage bucket capacity of 2.5 liters, made of SUS304 stainless steel.
Certification :
◆ CE certification
◆ CSA certification
Applications :
◆ Fermenter
◆ Bioreactor
◆ Gas Chromatograph
