Ordering Information :
◆ 167420-11(22)

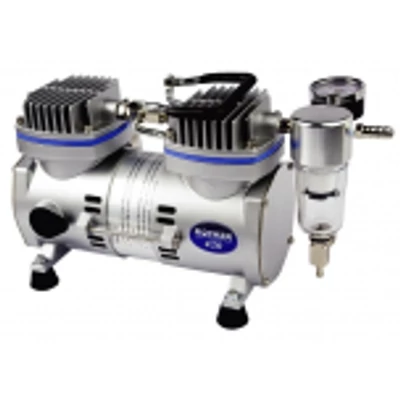

Rocker 420 Oil Free Compressor, AC110V,60Hz (AC220V, 50Hz)
Specification (110V, 60Hz)
◆ Max. power: 147 W
◆ Max. current:1.5 A
◆ Max. pressure: 80 psi
◆ Max. pressure: 100 psi
(w/o moisture trap)
◆ Max. flow rate: 27 l/min
◆ Noise level: 52.0 dB
◆ Horse power: 1/6 HP
◆ Net wet: 5.2 kg
◆ Port thread: 5/16 inch (8 mm)
Specification (220V, 50Hz)
◆ Max. power: 125 W
◆ Max. current:0.6 A
◆ Max. pressure: 80 psi
◆ Max. pressure: 100 psi
(w/o moisture trap)
◆ Max. flow rate: 25 l/min
◆ Noise level: 52.0 dB
◆ Horse power: 1/6 HP
◆ Net wet: 5.2 kg
◆ Port thread: 5/16 inch (8 mm)
Features :
◆ No air pollution, maintenance free
Rocker series pumps are driven by Piston, no need for lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Quiet and low vibration
Driven direct by motor with no additional belt-driven transmission; the quality vibration-proof assembly makes Rokcer series run at the lowest noise level among all other equivalent pumps.
◆ Thermal protection device
Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then restart it when the temperature cools down.
◆ Air outlet filter cartridge
Every Rocker series pump is equipped with moisture trap in air outlet to filter particle, moisture and prolong the product life.
Certification :
◆ CE certification
◆ CSA certification
Applications :
◆ Aeration
◆ Pressure filtration
