Leírás és Paraméterek

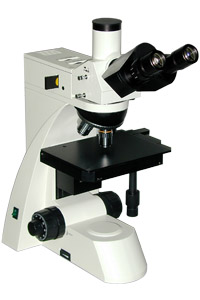

L3003 reflected metallurgical microscope is suitable to observe the surfaces of non-transparent object. It is equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provide clear and high-contrast picture, beautiful sculpt, convenient operation, etc. It is the ideal instruments for research work in metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.
* With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
* Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
* 6V 20W halogen lamp, adjustable brightness.
* Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.
