Leírás és Paraméterek

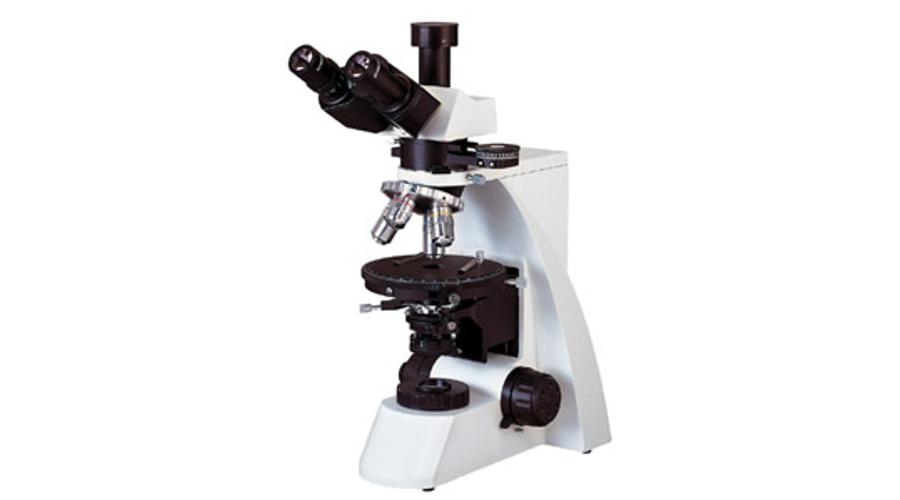

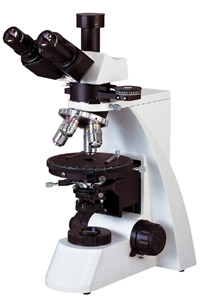

XPL-2 series polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing view, orthogonal polarizing view, cone light view. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
Features
Equipped with strain-free plan achromatic objectives(no cover glass) or infinity strain-free plan achromatic objectives(no cover glass) and wide field eyepiece
Nosepiece can adjust the center of objective
Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm
Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently
Revolving round stage, 360°part scale and graduated in 1°increments, minimum resolution 6’ when using vernier scale, center adjustable and with tightener
Illumination with 6V20W halogen lamp, adjustable brightness.
