Leírás és Paraméterek

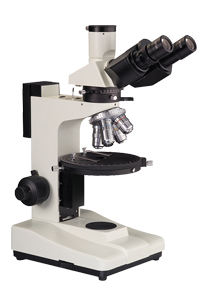

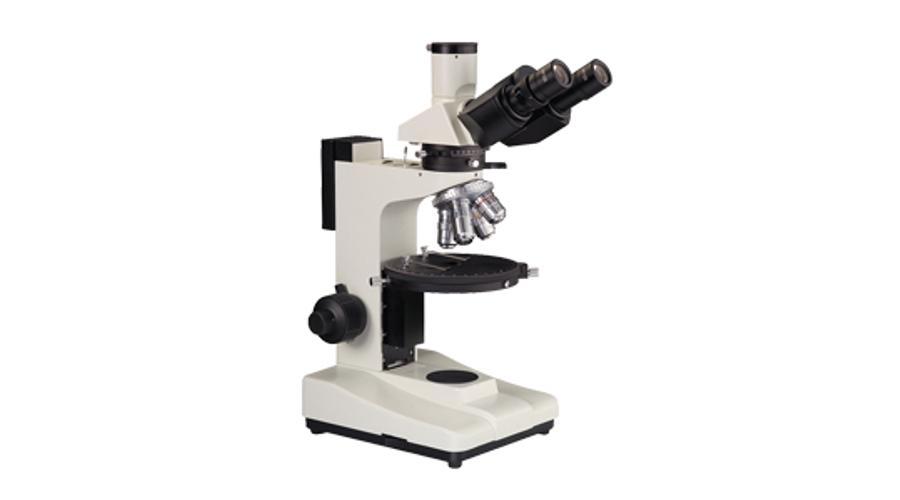

XPL-1500 series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
Transmitted, Reflected, transmitted/reflected illumination can be chosen
Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener. Stage vertical effective movement up to 30mm
Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable.
