Filtration System for Solvent Features:
◆ Compact and safe operation
Lafil series vacuum pump is an unique filtration system by combining vacuum source with filtration ware. Its compact design can save much bench space than the traditional ones. With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.
◆ No air pollution, maintenance free
Lafil 300C vacuum pump is driven by diaphragm, without the need of lubricant, regular oil changes and maintenance with no oil pollution.
◆ Good chemical resistance
Lafil 300C can offer good resistance to a wide range of corrosive gases except strong acid and alkali.
◆ One-step filtration
VF 12 can filtrate and store solution directly in GL45 storage bottle without the need of being transferred from the filtering flask.
◆ Suitable for GL45 storage bottle
Unique filtration adaptor design can connect with GL45 storage bottle (1000ml, 2000ml, 5000ml…etc.)
Filtration System for Solvent International certificate :
◆ CE certification
Filtration System for Solvent Applications :
◆ Solvent purification
◆ HPLC mobile phase purification
◆ Vacuum filtration
Filtration System for Solvent Ordering Information :
| Product Part Number | Product |

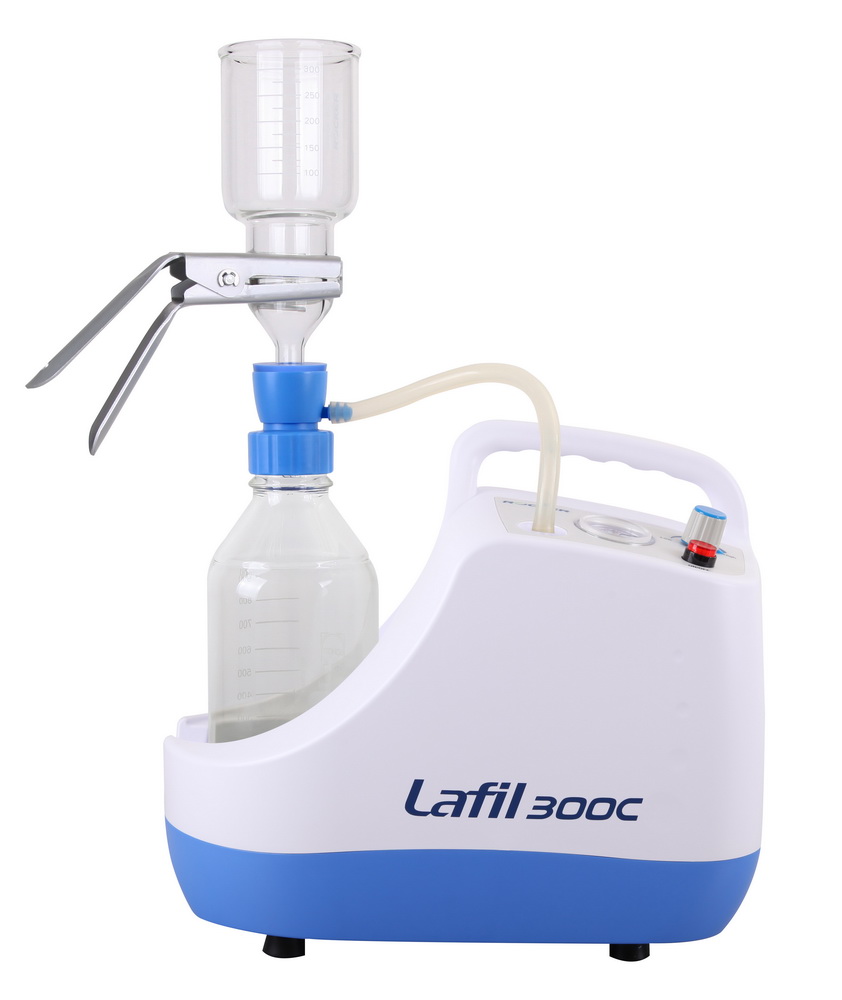

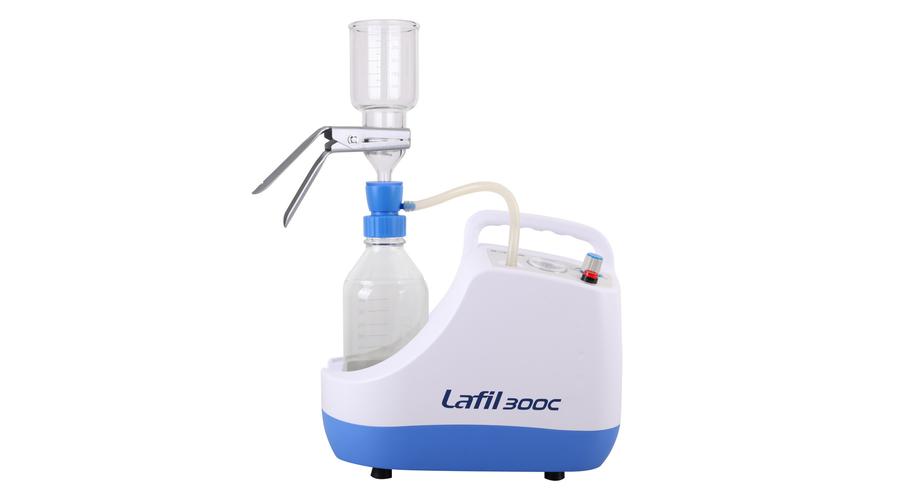

| ◆ 197331-11(22) | Lafil 300C – VF 12 Solvent Purification System,AC110V, 60Hz (AC220V, 50Hz) Complete Set Includes : ◆ Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump ◆ VF 12, Glass Filtration Apparatus |
| ◆ 197330-11(22) | Lafil 300C, PTFE Coated Vacuum Pump,AC110V, 60Hz (AC220V, 50Hz) |
| ◆ 167200-12 | VF 12, Glass Filtration Apparatus |
| ◆ 167120-31 | 300 ml Glass filter holder |
| ◆ 197000-59 | 1000 ml Glass storage bottle |
.
Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump
Specification (110V, 60Hz)
◆ Max. power：65W
◆ Max. current：0.7A
◆ Max. vacuum：99 mbar
◆ Max. flow rate：23 L/min
◆ Moisture Trap：No
◆ Vacuum Regulator：Yes
◆ Overflow protection：No
◆ Motor rotation：1750 RPM
◆ Horse power：1/8 HP
◆ Noise level：50 dB
◆ Hose barb：ID8 (5/16 inch)
◆ Vacuum Regulator：Yes
◆ Moisture Trap：No
◆ Thermal Protection：Yes
◆ Net weight：5.9 Kg
◆ Dimension (LxWxH)：35 x 24.3 x 29 cm
Specification (220V, 50Hz)
◆ Max. power：60W
◆ Max. current：0.3A
◆ Max. vacuum：145 mbar
◆ Max. flow rate：20 L/min
◆ Moisture Trap：No
◆ Vacuum Regulator：Yes
◆ Overflow protection：No
◆ Motor rotation：1450 RPM
◆ Horse power：1/8 HP
◆ Noise level：50 dB
◆ Hose barb：ID8 (5/16 inch)
◆ Vacuum Regulator：Yes
◆ Moisture Trap：No
◆ Thermal Protection：Yes
◆ Net weight：5.9 Kg
◆ Dimension (LxWxH)：35 x 24.3 x 29 cm
VF 12, Glass Filtration Apparatus
Material：
◆ Funnel – Borosilicate glass
◆ Support base – Borosilicate glass
◆ Membrane support – Sintered glass
◆ Clamp – Aluminum
◆ Stopper – Silicone rubber (No.8)
◆ Filtration adaptor – PP
◆ Storage bottle – Borosilicate glass
Specification :
◆ Funnel capacity：300 ml
◆ Storage bottle capacity：1000 ml
◆ Filter diameter：47 mm
◆ Hose barb：ID8 (5/16 inch)
