Filtration System Features:
- Compact and save space

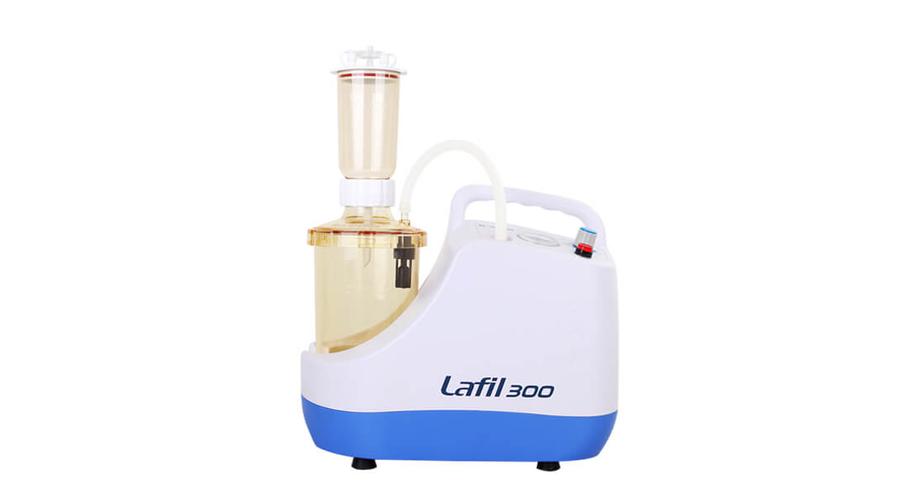

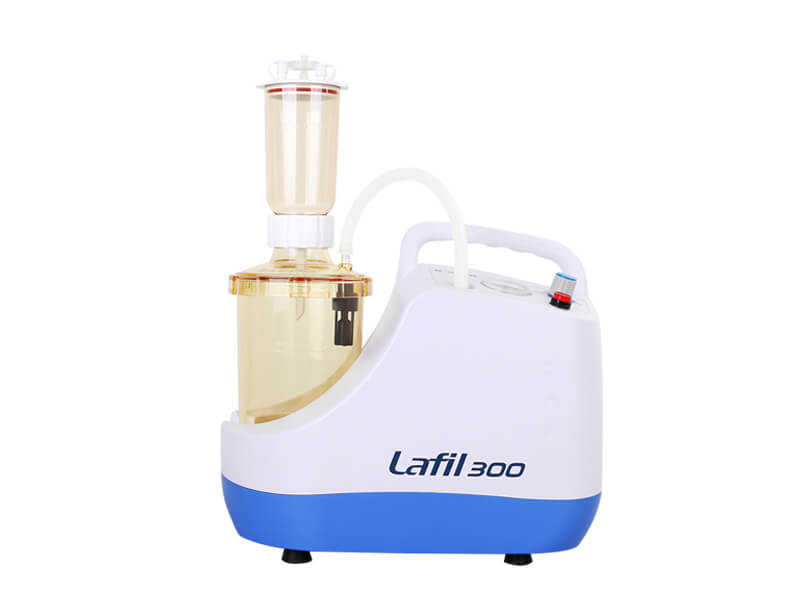

Lafil 300 is an unique system of combined vacuum source and filtration ware. Its compact design can save much bench space than the traditional ones.
- Safe operation
With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.
- The patented spin-lock design
The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.
- Overflow protection
The waste bottle comes with a built-in overflow protection to keep the filtrate from overflowing when it is full.
- Autoclavable and shatterproof
The waste bottle and filter holder is made of engineering plastics which are shatterproof, high temperature resistance and autoclavable.
Filtration System International Certificate:
- CE certification
Filtration System Applications :
Filtration System Ordering Information :
| Product Part Number | Product |
| 197301-11(22) | Lafil 300 – LF 30, Vacuum Filtration System,AC110V, 60Hz (AC220V, 50Hz) |
| 197300-11(22) | Lafil 300, Vacuum Pump,AC110V, 60Hz (AC220V, 50Hz) |
| 197010-30 | LF 30, 47mm PES Filtration Set |
Lafil 300, Oil Free Vacuum Pump
Specification (110V, 60Hz)
- Max. power：65W
- Max. current：0.7A
- Max. vacuum：99 mbar
- Max. flow rate：23 L/min
- Motor roatation speed：1750 RPM
- Horse power：1/8 HP
- Noise level：50 dB
- Hose barb：ID8 (5/16 inch)
- Vacuum regulator：Yes
- Thermal protection：Yes
- Net weight：5.9 Kg
- Dimension (LxWxH)：33.5 x 24.5 x 30 cm
Specification (220V, 50Hz)
- Max. power：60W
- Max. current：0.3A
- Max. vacuum：105 mbar
- Max. flow rate：20 L/min
- Motor roatation speed：1450 RPM
- Horse power：1/8 HP
- Noise level：50 dB
- Hose barb：ID8 (5/16 inch)
- Vacuum regulator：Yes
- Thermal protection：Yes
- Net weight：5.9 Kg
- Dimension (LxWxH)：33.5 x 24.5 x 30 cm
LF 30, PES Filtration Apparatus
Material：
- Funnel – PES
- Support base – PC
- Membrane support – PP
- Receiver bottle – PC
- Syringe filter – PTFE
Specification：
- Funnel capacity: 300 ml
- Waste bottle capacity: 1200 ml
- Filter diameter: 47 mm
- Hose barb: ID8 (5/16 inch)
- Overflow protection: Yes
