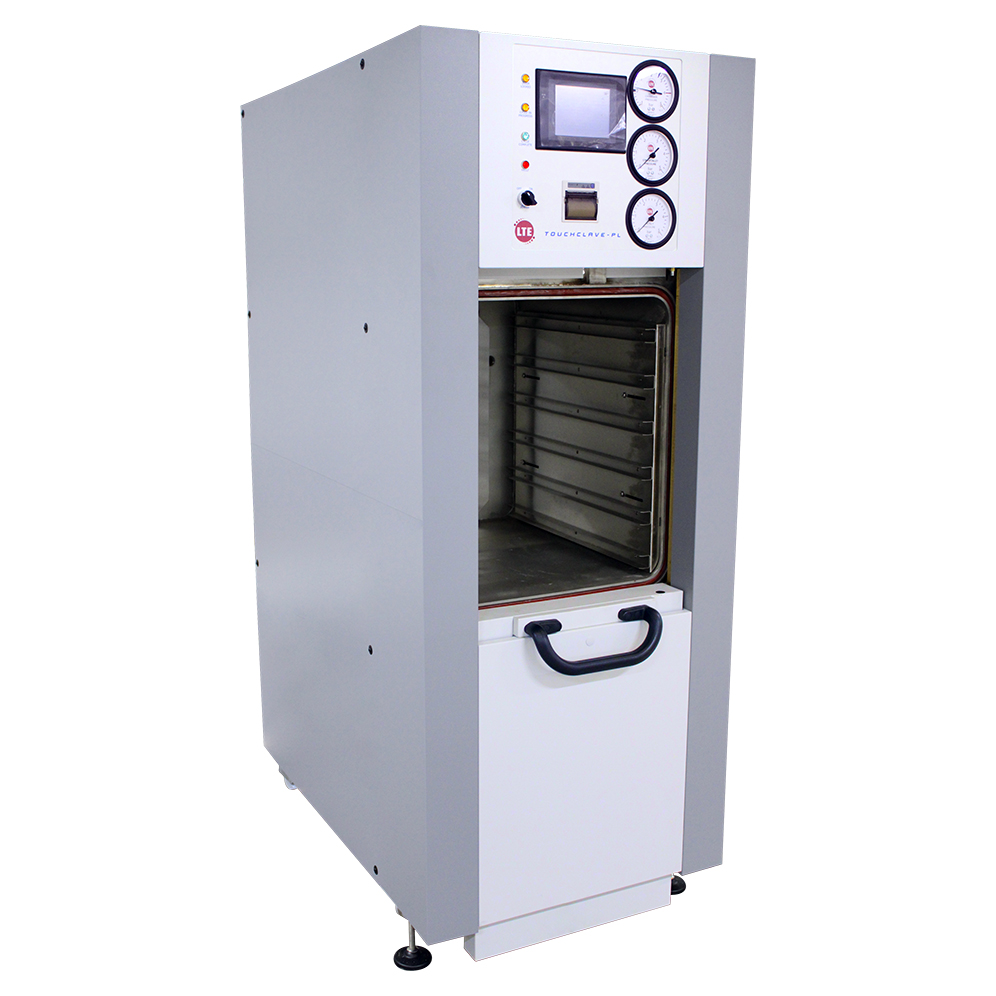

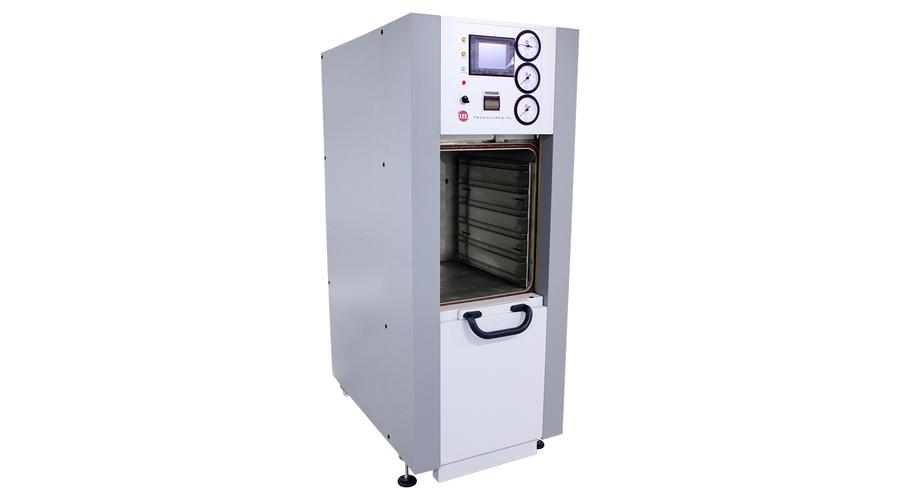

Designed for smaller CSSD’s, LTE’s Touchclave-PL is a mid-sized rectangular chamber autoclave for porous loads.
Designed with a rectangular chamber and vertical sliding door, Touchclave porous load autoclaves offer maximum loading efficiency with a high level of standard features for unrivalled versatility.
Available in a range of sizes from 150 Litres up to 450 Litres, fitted with air detector as standard and complete with castors for easy manoeuvrability, with pass through options available on the 300 Litre and upwards chambers.
The Touchclave porous load steam sterilizer is set apart from the smaller autoclaves as it can be connected to the customers steam supply or fitted with its own steam generator.
Capacities: 150, 200, 300, 360 and 450-litres
Pass-Through: Available on 300, 360 and 450-litre models
Chamber Section: Rectangular
Loading: Front
Temperatures: 105 – 136°C
316L Stainless Steel Pressure Vessel
Constructed with a 316L grade stainless steel pressure vessel. Fully compliant with the European pressure equipment directive 97/23/EC.
8-Program Touchscreen Control System
8 cycles can be stored into the memory as standard, providing a selection of load-specific cycles or giving users the option to develop and edit their own cycle profiles.
Internal Data Archiving
The Touchclave PL series is equipped with automatic electronic data archiving. This comprises of an internal data storage facility which allows up to 5000 cycles to be stored on a single flash-card.
Pre/Post Vacuum System
Provides quicker and more efficient air removal at the start of the cycle, ensuring that steam will penetrate deep into the load and not be affected by trapped air pockets. Can also help speed up the cooling stage, as the vacuum can be used to help dissipate heat from the load.
Steam Jacket
The steam jacket keeps the chamber hot in between cycles, and assists during the drying stage by flashing-off residual water in or around the load. This is required where dry loads are necessary.
Air Detector
The air detector monitors the steam pressure levels within the chamber at all times during the cycle ensuring that any air leaks or non-condensable gases carried over with the steam supply are immediately detected.
Exhaust Condensate
A re-circulating exhaust condensate unit enables discharge water temperatures to be kept below 70°C to avoid damage to plastic pipes and the environment. On vacuum models this feature also serves to protect the vacuum pump from live steam.
Pneumatic Door
Both sliding and automatic doors are locked and sealed pneumatically by utilising the inbuilt silent air compressor. The door is managed by the control panel to ensure it cannot be released until the chamber has reached atmospheric pressure and temperature.
Integral Silent Air Compressor
Touchclave Porous Load autoclaves use an inbuilt pneumatic compressor and receiver to create and store air pressure. This is used for the pneumatic valves and door seal as a seal and release mechanism. An uprated compressor can be used if ballast air is required.
Steam Generator or Direct
