Leírás és Paraméterek

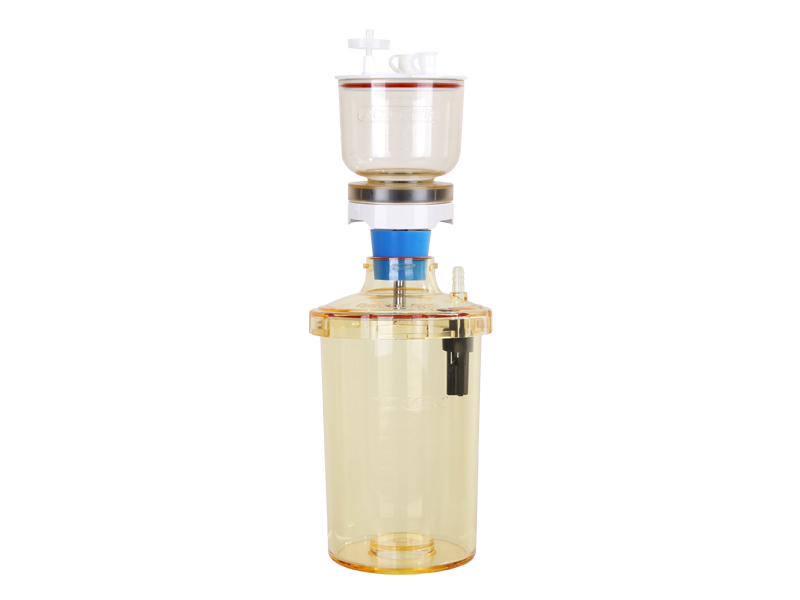

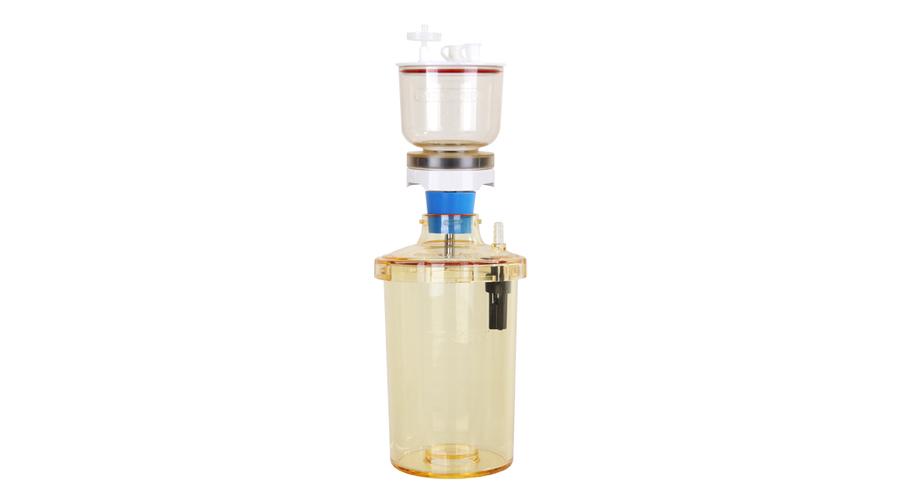

Filtration Apparatus: Features
◆ MF 30 strong magnetic seal allows one-handed operation
◆ Excellent smash, high temperature resistance and autoclavable.
◆ Funnel graduated in 50 ml, receiver in 100 ml increments for easy measurement.
◆ Built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.
Complete Set Include :
◆ 300 ml PES Magnetic filter holder
◆ 1200 ml PC waste bottle with cover
◆ Overflow protection
◆ Silicon stopper (No.16)
◆ Cap with suction fitting
Filtration Apparatus Applications :
◆ General filtration
◆ Waste suction
Filtration Apparatus Ordering Information :
| Product Part Number | Product |
| 200320-30 | MF 30, 47 mm Filtration Apparatus |
| 200300-01 ◆ 200300-36 ◆ 200300-30 ◆ 200300-32 ◆ 167110-17 |
MF 3, Magnetic filter holder (300ml) includes: ◆ PP lid kit for magnetic funnel ◆ PES magnetic funnel, 300 ml ◆ PES magnetic support base ◆ Silicone stopper (No. 16) |
| ※ 197000-11-PC ◆ 197000-40 ◆ 197000-32-PC ◆ 197000-39 ◆ 197000-31-PC |
PC waste bottle with cover, 1200 ml ◆ Black PP cap ◆ PC cover ◆ Overflow protection ◆ PC bottle, 1200 ml |
Specification :
◆ Funnel capacity：300 ml
◆ Flask capacity：1200 ml
◆ Filter diameter：47 mm
◆ Hose barb：ID8
◆ Syringe filter : 25 mm, 0.2 μm
Material：
◆ Funnel – PES
◆ Support base – PES
◆ Membrane support – PES
◆ Syringe filter – PTFE
◆ Receiver flask – PC
