Leírás és Paraméterek

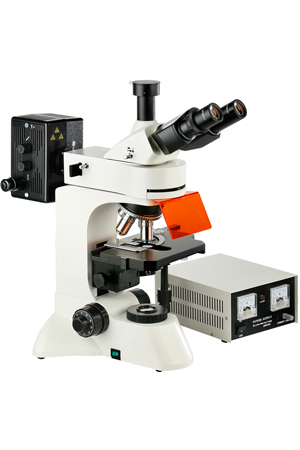

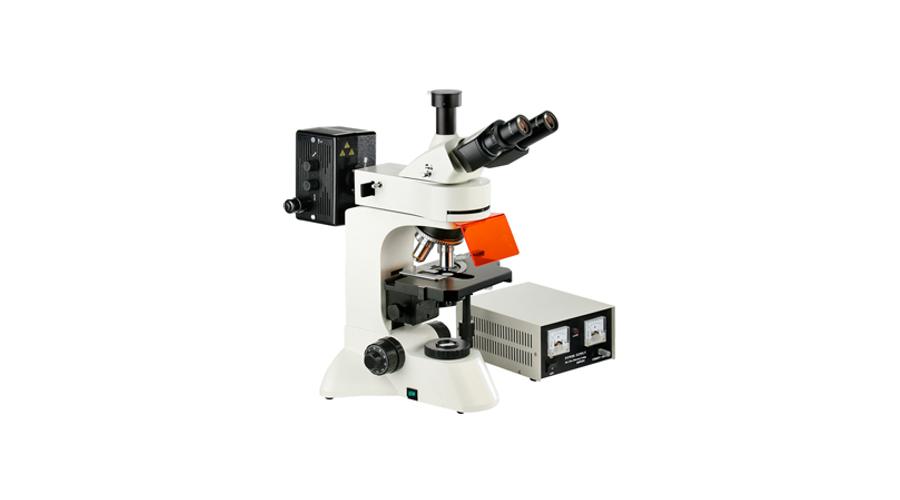

L3201 Epi-fluorescent microscope is used for fluorescence microscopy and transmitted bright field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear and high contrast picture in your wide view field. The main body design meets with the ergonomics needs and makes you feel comfortable and relaxed in process of operation. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Features
Adopt infinity optical system and modularization function design.
Equipped with infinity plan achromatic fluorescent objectives, enable obtain more clearer and brighter image.
Wide-field plan eyepieces: field number Ф22mm.
Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm
Transmitted illumination system: Integrated field diaphragm and 6V30W halogen lamp, adding radiator and brightness control.
Epi-illumination system: 100W/DC mercury lamp. The voltage of power supply is 220V or 110V.
Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low luminance microphotography.
