Leírás és Paraméterek

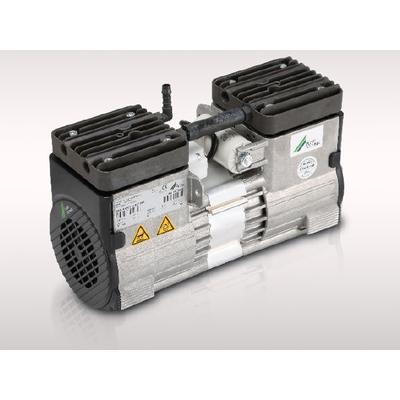

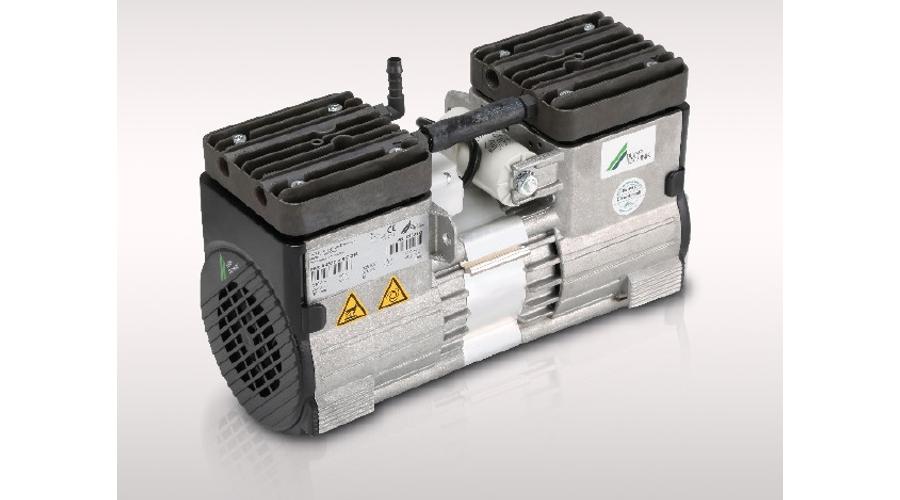

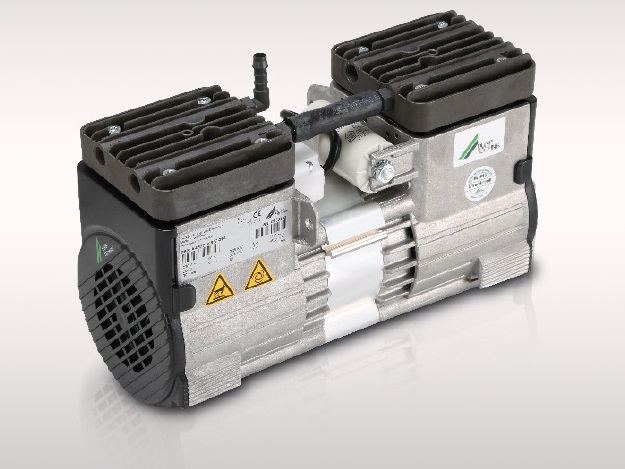

Oil-free piston-vacuum pump range KV 15
The oil-free piston vacuum pumps of the range KV are realized where utmost operating safety is required, as for example in 24/7-application in industry enterprises, for retention of hydraulic oils on service at construction machinery as well as for medical machines. The oil-free piston-vacuum pumps offer as a 2-phase pump a vacuum of up to 30 mbar. The characteristic of the oil-free piston-vacuum pumps are the integrated, overdimensioned bearings. Owing to this, the best possible lifetime and reliability of the vacuum pumps is achieved. The suction capacity of oil-free piston-vacuum pumps of the range KV remains almost unchanged even after many thousand operating hours because of the exactly aligned components.
Advantages
1. Extremely reliable
2. Long lifetime
3. Constant flow volume
4. Piston principle
Technical data
| Type | Free air flow at 0 bar | Noise level | Motor input | Current consumption | Voltage | Frec. | Protection Class | Dimensions |
| (l/min) | PN dB (A) | P1 (kW) | (A) | (V) | (Hz) | (IP) | L x H x W (mm) | |
| A-038E | 38 | 54 | 0,2 | 1,3 | 230 | 50 | IP54 | 249x156x180 |
| A-038E | 45 | 56 | 0,22 | 1 | 230 | 60 | IP54 | 249x156x180 |
| A-062E1 | 38 | 49 | 0,25 | 1,6 | 230 | 50 | IP20 | 291x139x205 |
| A-062E1 | 45 | 51 | 0,26 | 1,2 | 230 | 60 | IP20 | 291x139x205 |
| A-062E2 | 72 | 53 | 0,26 | 1,2 | 230 | 50 | IP20 | 291x150x183 |
| B-038E | 38 | 54 | 0,18 | 1,4/0,8 | 230/400 | 50 | IP54 | 249x156x180 |
| B-038E | 45 | 56 | 0,14 | 1,0/0,6 | 230/400 | 60 | IP54 | 249x156x180 |
