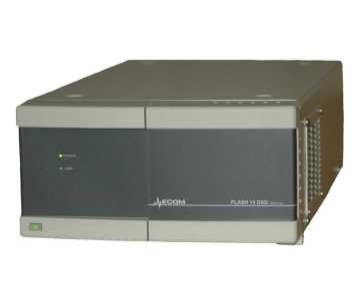

Flash 14 DAD 600 Detektor

Cikkszám: ECOM Flash 14 DAD 600 Detektor
Gyártó: ECOM spol. s r.o.

Leírás és Paraméterek

Flash 14 DAD 600 is an UV diode array detector (DAD,PDA), that allows measuring absorbance on four wavelengths simultaneously in one cell just as visualization of whole spectra. This unit is used in liquid chromatography for verification of analyzed samples by means of four wavelengths or in situations, when some peaks absorb on different wavelengths. It is possible to use the detector in flash and preparative applications.

The unit is designed as standalone with 90-264 V power supply and RS232 controlling.

The DAD detector design offers many advantages, such as:

  • Continuous 5 Hz scan or absorbance measuring on four wavelengths simultaneously
  • Wavelength setting from 200 up to 600 nm in increments of 1nm
  • Visualization of whole spectra
  • Supportin Clarity SW and ECOMAC
  • Lamp work hours are counted using a built-in counter
  • Lamp is easy exchangeble from detector front panel
  • Powering 90–264 V
  • Unit is controlled through RS232 interface

Technical parameters:

Wavelength range (four wavelengths simultaneously 200 - 600 nm (256 elements on CCD)
Typical spectral half-width 8 nm
Accuracy of adjustment ± 1 nm
Reproducibility ± 0.5 nm
Light source Deuterium discharge lamp
Noise level at test cell (254 nm, TC 0.75 s) ± 5 x 10-5 AU
Drift at test cell (254 nm after 1 h) 1 x 10-3 AU/hod
Materials in contact with mobile phase PTFE; fused silica, stainless steel
Time constant (T90) 0.5 s; 0.75 s; 1 s nebo 2 s (T63 0,3s;0,4s;0,6s;1s)
Output for integrator 1 V/AU (in digital form only)
Interface RS 232
Power supply 90–264 V
Power input 90 VA
Dimensions (W x H x D) 280 x 130 x 463 mm (11.02 x 5.12 x 18.23 in)
Weight 9.0 kg (19.84lb)

Preparative cell PLCC 15 (supplied with unit, in special holder):

Volume / optical path (adjustable) 45 µl / 0.3 mm
55 µl / 1.4 mm
70 µl / 2.4 mm
Cell connecting tubing with OD = 1/8", thread 1/4"-28
Maxiimal flow rate 500 ml/min.
