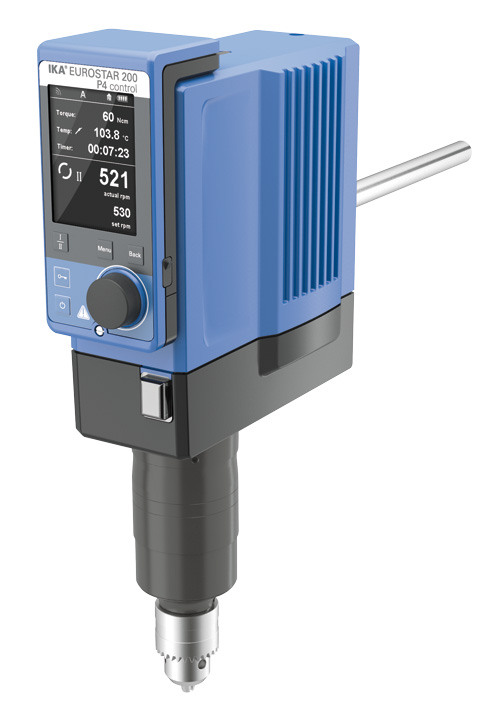

EUROSTAR 200 control P4 laboratóriumi keverő

Cikkszám: IKA EUROSTAR 200 control P4 laboratory stirrer
Gyártó: IKA®-Werke GmbH & Co. KG

Leírás és Paraméterek

Extremely powerful laboratory stirrer for highly viscous applications for quantities up to 100 l (H2O). It is designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/4 - 530 rpm (two speed ranges). The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

  • Multilingual TFT display
  • Programmable functions
  • Integrated temperature measurement
  • Interval operation
  • Timer function
  • Adjustable safety circuit
  • Locked function
  • Infinitely adjustable speed
  • Overload protection
  • Short-term overload operation
  • Slim casing
  • Quiet operation
  • Error code display

Technical data:

Stirring quantity max. (H2O) 100 l
Motor rating input 134 W
Motor rating output 76 W
Motor principle Brushless DC
Speed display TFT
Speed range 0/4 - 530 rpm
Reversible direction of rotation no
Intermittent operation yes
Viscosity max. 150000 mPas
Output max. at stirring shaft 76 W
Permissible ON time 100 %
Torque max. at stirring shaft 660 Ncm
torque I max. 660 Ncm
torque II max. 130 Ncm
Speed range I (50 Hz) 4 - 108 rpm
Speed range II (50 Hz) 16 - 530 rpm
Speed range I (60 Hz) 4 - 108 rpm
Speed range II (60 Hz) 16 - 530 rpm
Speed control stepless
Setting accuracy speed 1 ±rpm
deviation of speed measurement n > 300rpm 3 ±rpm
deviation of speed measurement n < 300rpm 1 ±%
Stirring element fastening chuck
Connection for ext. temperature sensor PT1000
Temperature display yes
Chuck range min. diameter 0.5 mm
Chuck range max. diameter 10 mm
Hollow shaft (push-through ¿ when stopped) no
Fastening on stand extension arm
Extension arm diameter 16 mm
Extension arm length 220 mm
Torque display yes
Nominal torque 6.6 Nm
Torque measurement trend
deviation of torque measurement I 60 ±Ncm
deviation of speed measurement II 10 ±Ncm
Timer yes
Timer display TFT
Time setting range 1 - 6000 min
Temperature measuring range min. -10 °C
Temperature measuring range max. +350 °C
Temperature measurement resolution 0.1 K
Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
housing material alu-cast coating / thermoplastic polymer
clean room qualified no
explosion proofed no
communication distance (depend onbuilding) max.      150 m
Dimensions (W x H x D) 91 x 379 x 231 mm
Weight 5.8 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS 232 interface yes
USB interface yes
Analog output no
Voltage 230 / 100 - 115 V
Frequency 50/60 Hz
Power input 134 W
