WaterVac Filtration System Features:
◆ Save 70% bench space
The compact design of WaterVac 100 vacuum filtration system can save much bench space by simplifying procedure and tools needed in membrane filtration method.
◆ Improve operation time
Direct drainage design saves a lot of time to empty waste bottle and make the filtration more efficient.
◆ Easy Operation
Simply put on membrane on filter holder and push on/off button to start filtration easily.
◆ Versatile
Replaceable funnel base design makes it compatible with various kinds of filter holder.
◆ Compatible with Rocker SF funnel
WaterVac 100-MB can accept Rocker SF funnel – 100 / 300 / 500 ml. SF funnel is made of SS316 stainless steel which can be fast sterilized by flame.
WaterVac Filtration System Applications:
◆ MF Technique for analyzing aqueous-based fluids for microbial contamination.
◆ Suspended Solid test for municipal, surface, ground and drinking water.
◆ General filtration which no need to collect filtrate
WaterVac Filtration System International Certificate:
◆ CE certification
| Product Part Number | Product |
|
◆ 190110-01 ◆ 190110-02 |
WaterVac 100-MS, Vacuum Filtration System WaterVac 100-MS, Vacuum Filtration System |
| ◆ 200300-01 | MF 3, 300 ml Magnetic Filter Holder with lid kid |
| ◆ 200500-01 | MF 5, 500 ml Magnetic Filter Holder with lid kid |
.

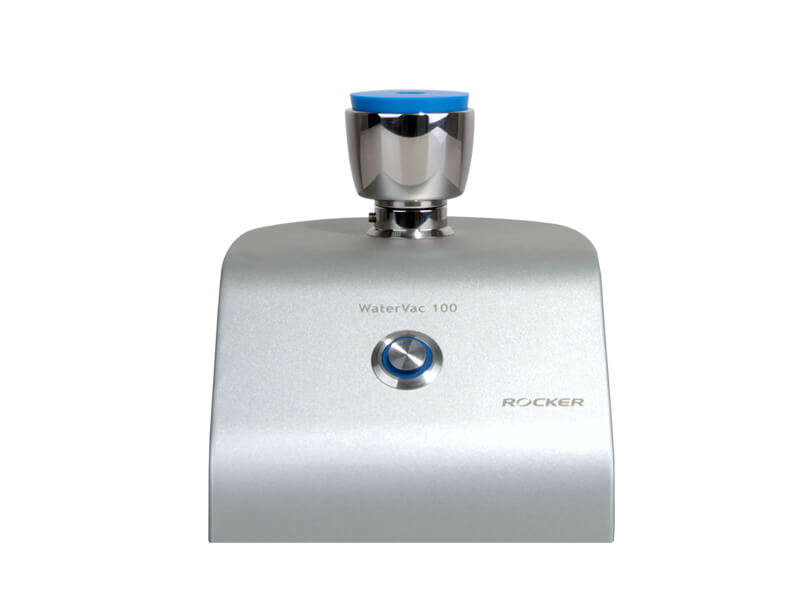

WaterVac100-MS
Specification
◆ Power : DC12V, 1.0A
◆ Max. vacuum : 313 mbar
◆ Max. liquid flow rate : 0.5 L/min
◆ Motor : 12W Brushless DC Motor
◆ Hose barb : ID6
◆ Material contact with filtrate : SS316, FKM, Silicone, PP, PA66
◆ Adaptor : Stopper
Materials
◆ Housing material – SS304
◆ Adaptor – SS316
◆ Valve plate – EPDM (Ethylene Propylene Diene Monomer)
◆ Diaphragm – EPDM (Ethylene Propylene Diene Monomer)
◆ Fluid Path Inlet – SS316
◆ Fluid outlet port – SS316
◆ Fluid path hose – Silicone tube
◆ O-ring – FKM
◆ Draining hose – silicone
