Filtration Apparatus Features:
◆ Clearly-marked graduations in the funnel are convenient for sample addition.
◆ Sintered glass or stainless steel screen membrane support to meet your needs.
Filtration Apparatus Applications :
Small volume vacuum filtration for biological or particulate contamination analysis.
Filtration Apparatus Ordering Information :

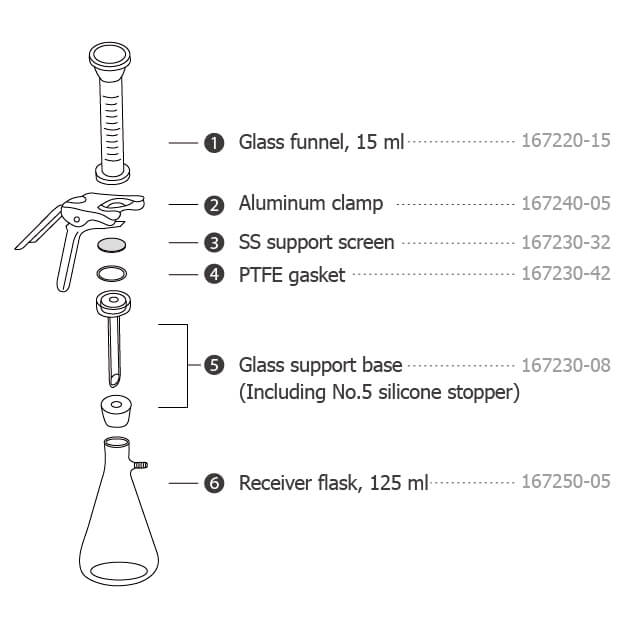

| Product Part Number | Product |
| 167200-08 | VF 8, 25 mm Microanalysis Glass Filtration Set (it includes the following) |
| 167250-05 | (6) Receiver flask, 125ml |
| 167120-34 | 15 ml Glass filter holder (it includes 1/2/3/4/5) |
| 167220-15 | (1) Glass funnel, 15ml |
| 167240-05 | (2) Aluminum camp |
| 167230-32 | (3) Sintered glass support base ( including No.5 silicone stopper) |
| 167230-42 | (4) PTFE gasket |
| 167230-08 | (5) Glass support base ( including No.5 silicone stopper) |
| Material | VF8 |
| Funnel | Borosilicate glass |
| Support base | Borosilicate glass |
| Membrane support | SS screen with PTFE gasket |
| Clamp | Aluminum |
| Stopper | Silicone rubber |
| Receiver flask | Borosilicate glass |
| Specification | |
| Funnel capacity | 15ml |
| Flask capacity | 125ml |
| Filter diameter | 25mm |
| Hose barb | ID8 |
| Effective filtration area | 2.5 cm2 |
