◆ The screwthread connector helps remove the silicone tube quickly.
◆ The silicone fixing sucker prevents the receiver flask from tipping over accidentally.

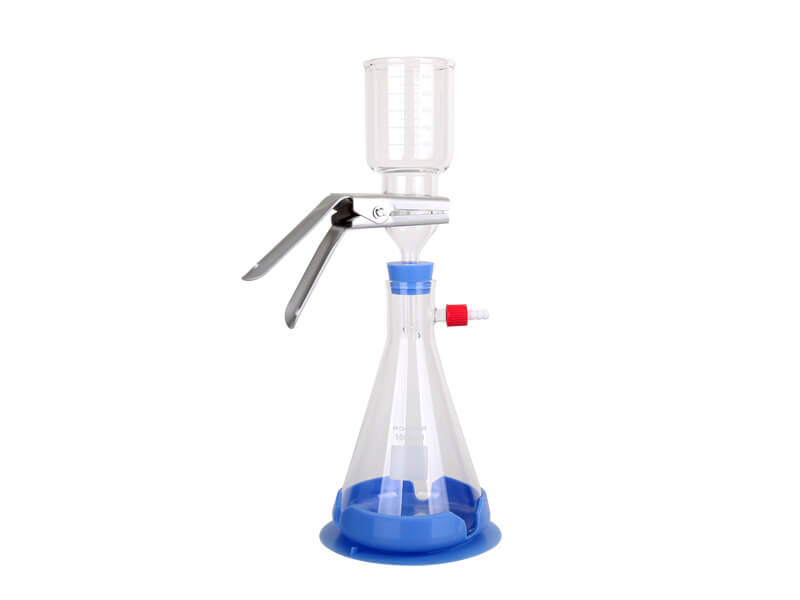

Filtration Apparatus Features:
◆ The screwthread connector helps remove the silicone tube quickly.
◆ The silicone fixing sucker prevents the receiver flask from tipping over accidentally.
Filtration Apparatus Applications :
Ideal for solvent purification and general filtration such as microbiological test, suspended solid analysis etc.
Complete Set Include :
◆ 300 ml Glass filter holder
◆ 1000 ml Receiver flask
◆ Silicone fixing sucker
Filtration Apparatus Ordering Information :
| Product Part Number | Product |
| 167200-06 | VF 6, Glass Filtration Set (it includes the following) |
| 167250-03 | (4) Receiver flask, 1000ml (with screwthread connector) |
| 167200-45 | (5) Silicone fixing sucker |
| 167120-31 | Glass filter holder 300 ml (it includes 1/2/3) |
| 167210-03 | (1) Glass funnel, 300ml |
| 167240-01 | (2) Aluminum camp, 47mm |
| 167230-03 | (3) Sintered glass support base ( including No.8 silicone stopper) |
Specification :
| Material | VF6 |
| Funnel | Borosilicate glass |
| Support base | Borosilicate glass |
| Membrane support | Sintered glass |
| Clamp | Aluminum |
| Stopper | Silicone rubber |
| Receiver flask | Borosilicate glass |
| Specification | |
| Funnel capacity | 30 ml |
| Flask capacity | 1000 ml |
| Filter diameter | 47mm |
| Hose barb | ID8 |
| Effective filtration area | 13.2 cm2 |
