Leírás és Paraméterek

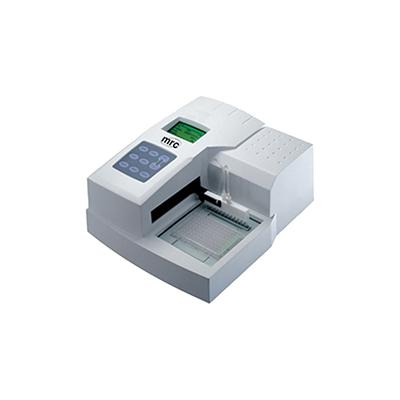

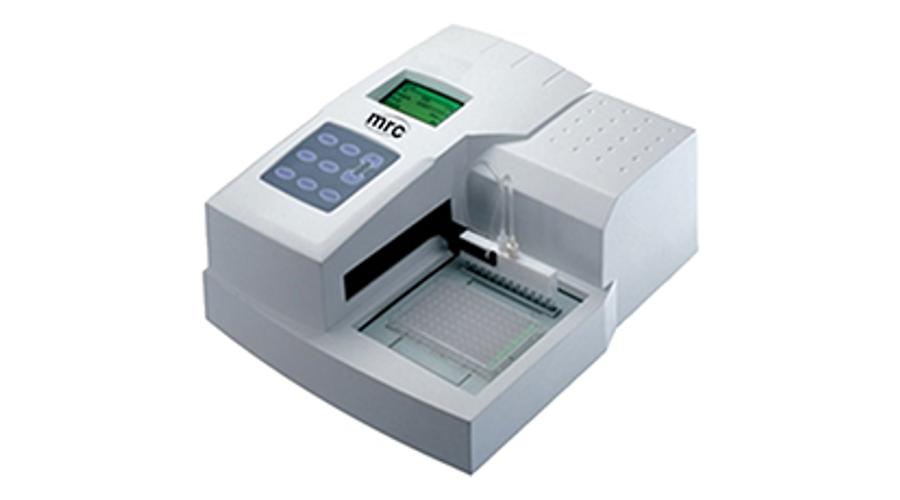

Auto Microplate washer, 8-pin or 12-pin manifolder
Plate Mode 96-/48-well plate or strip
Dispense Precision CV<2.0%
Residual Volume <1µl
Washing Volume
50~3000µL for 8-way manifold
50~2000µLfor 12-way manifold
Washing Cycle Maximum 99 cycles
Strip Washing 1 to 12 strips programmable
Soaking Time 0~24hours
Shaking Time 0~24hours
Display 5'' LCD
Wash Channels
3 channel bottles, 1 for wash, 1 for water(rinse)
and 1 for waste
Bottles Capacity 2 Liters each bottle
Memory 50 washing protocols
Interface RS-232
Power Supply AC 110/220V±10%, 50~60HZ
Net Weight 8KG
Dimension (mm) L390xW340xH180
|
Model |
UT-2600C |
|---|---|
|
Plate Mode |
96-/48-well plate or strip |
|
Dispense Precision |
CV<2.0% |
|
Residual Volume |
<1µl |
|
Washing Volume |
50~3000µL for 8-way manifold 50~2000µLfor 12-way manifold |
|
Washing Cycle |
Maximum 99 cycles |
|
Strip Washing |
1 to 12 strips programmable |
|
Soaking Time |
0~24hours |
|
Shaking Time |
0~24hours |
|
Display |
5'' LCD |
|
Wash Channels |
3 channel bottles, 1 for wash, 1 for water(rinse) and 1 for waste |
|
Bottles Capacity |
2 Liters each bottle |
|
Memory |
50 washing protocols |
|
Interface |
RS-232 |
|
Power Supply |
AC 110/220V±10%, 50~60HZ |
|
Net Weight |
8KG |
|
Dimension (mm) |
L390xW340xH180 |
