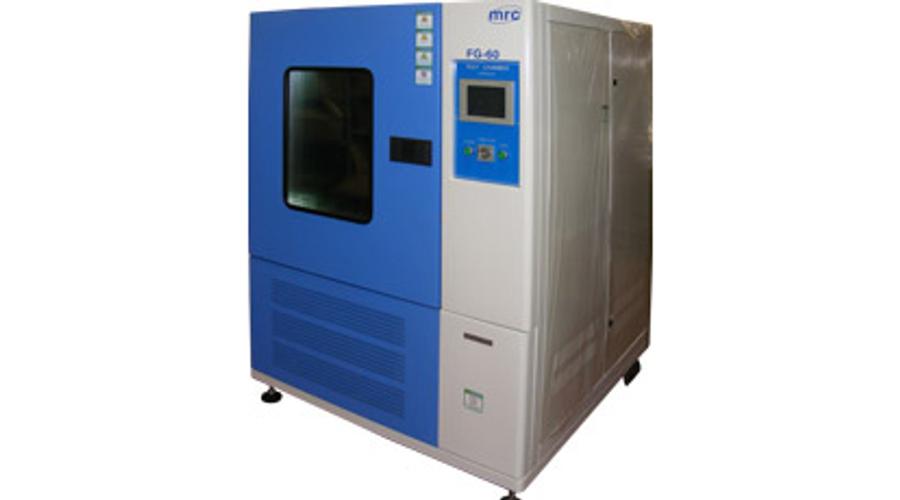

Temp/humidity chamber 416L , -40~100 C
● Capacity: 416 liter.
● Internal Dimensions(mm): W700XH850XD700
● External Dimensions(mm): W1230XH1660XD1210
● Temp range: -40-100 °C.
● Humidity range: 20-98% RH(Check humidity/temp. graph in technical details).
● Solid state heating and humidity switching
● Many built-in safety devices.
● distilled water built-in container.
● Equipped with wheels for easy moving.
● Cooling rate from 1 to 1.5 degrees per minute
● Environment friendly cooling system CFC-Free.
Included:
● 2 stainless steel adjustable board set.
● Vacuum glass prespective window.
● Operating room light.
Optional equipment:
● 100 mm chart Recorder.
|
Model |
HG-30 |
HG-40 |
HG-50 |
HG-60 |
HG-80 |
FG-40 |
FG-50 |
FG-60 |
FG-80 |
LG-40 |
LG-50 |
LG-60 |
LG-80 |
TG-50 |
TG-60 |
TG-80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Internal W Dimensions H (mm) D |
300 400 300 |
400 500 400 |
500 600 500 |
700 850 700 |
1000 1000 800 |
400 500 400 |
500 600 500 |
700 850 700 |
1000 1000 800 |
400 500 400 |
500 600 500 |
700 850 700 |
1000 1000 800 |
500 600 500 |
700 850 700 |
1000 1000 800 |
|
External W Dimensions H (mm) D |
720 1060 620 |
930 1310 810 |
1030 1410 910 |
1230 1660 1210 |
1530 1810 1310 |
930 1310 810 |
1030 1410 910 |
1230 1660 1210 |
1530 1810 1310 |
930 1310 810 |
1030 1410 910 |
1230 1660 1210 |
1530 1810 1310 |
1030 1410 910 |
1230 1660 1210 |
1530 1810 1310 |
|
Volume (Liters) |
36 |
80 |
150 |
416 |
800 |
80 |
150 |
416 |
800 |
80 |
150 |
416 |
800 |
150 |
416 |
800 |
|
Temperature Range |
0°C~100°C(150°) |
-20°C~100°C(150°) |
-40°C~100°C(150°) |
-70°C~100°C(150°) |
||||||||||||
|
Humidity & Temp. Uniformity |
±0.5°C ±3%RH |
±1°C ±5% |
±0.5°C ±3%RH |
±1°C ±5% |
±0.5°C ±3%RH |
±1°C ±5% |
±0.5°C ±3%RH |
±1°C ±5% |
||||||||
|
Temp. Rising Speed |
0°C~100°C about 20min |
-20°C~100°C about 35min |
-40°C~100°C about 40min |
-70°C~100°C about 60min |
||||||||||||
|
Cooling Speed |
20°C~0°C about 20min |
20°C~-20°C about 45min |
20°C~-40°C about 60min |
20°C~-70°C about 90min |
||||||||||||
|
Freezing System |
Simoleon type full airtight air-cooled refrigeration system |
Binary full airtight air-cooled refrigeration system |
||||||||||||||
|
Humidity Range |
20%~98%RH |
Temp. &humid. stability |
±0.2% ±2%RH |
|||||||||||||
|
Temp. & Humidity Adjustment |
Balancing temperature & humidity adjustment method |
External material |
SUS304 # Stainless steel |
|||||||||||||
|
Internal Material |
SUS304 # Stainless steel |
Humidification |
Surface Steam type, stainless heating humidifier, with humid. water shortage power interruption & thermal protection |
|||||||||||||
|
Temp. Preservation |
Material rock wool hard PU polyurethane foams |
Temp. preservation heating system |
Stainless steel heating type humidifiner |
|||||||||||||
|
Circulation System |
Fan forced recycling convection |
Xeransis system |
refrigeration invisible heat xeransis method |
|||||||||||||
|
Water Supply System |
Front-positioned water tank, fully automatic water supply control, recycling filter re-utilization with water shortage alarm device |
|||||||||||||||
|
Safety Device |
Power leakage & overload protective device, compressor overload protective device, over-temperature & over-humidity circuit breaker protection, water shortage protection, humidifier over-heating protection, temperature limit protective device. |
|||||||||||||||
|
Standard Accessory |
2x Stainless steel adjustable board sets, vacuum glass perspective window, testing aperture, operating room light,motion wheel, control indicator |
|||||||||||||||
|
Optional Accessory |
Recorder |
Power |
AC220V, 1PH, 50/60Hz |
|||||||||||||
