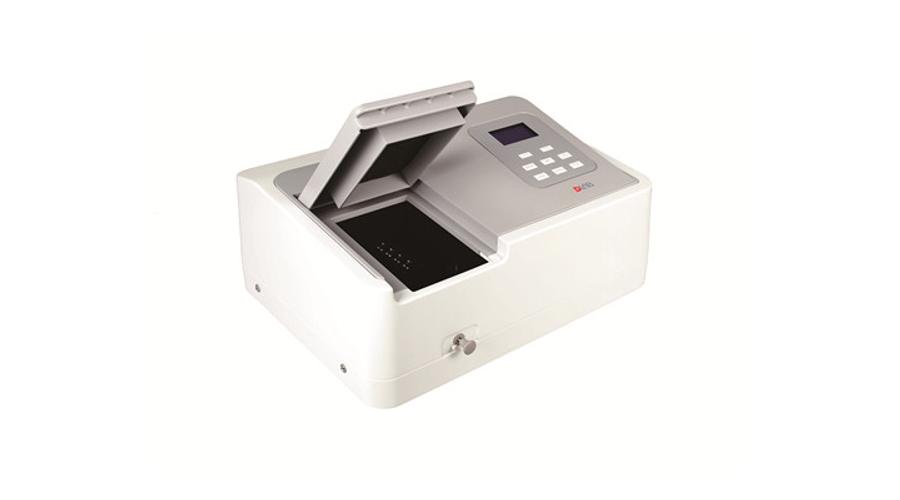

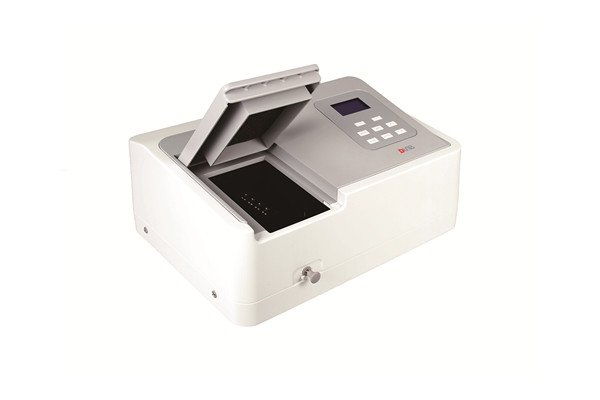

SP-V1000 Spektrofotométer
• User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
• On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
• Data can be restored after a sudden power failure.
• Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
• PC control through application software: The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides computer control for the spectrophotometer(through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning & Nucleic Acid /Protein measurement. (SP-V1100/SP-UV1100)
• Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.
| Specifications | SP-V1000 |
| Optical Systen | Single Beam |
| Light Source | Tungsten lamp |
| Spectral Bandwidth | 4.0nm |
| Wavelength Range | 325-1000nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Photometric Range | -0.3-3.0A， 0-200%T |
| Photometric Accuracy |
±0.003A@0.5A,
±0.006A@1.0A,
±0.5%T@100%T
|
| Photometric Repeatability |
≤0.0015A@0.5A,
≤0.003A@1.0A,
≤0.25%T@100%T
|
| Stability | ≤0.002A/h @500nm (after preheat 2 hours) |
| Stray Light | ≤0.2%T@360nm |
| Sample Compartment | 4-position,10mm pathlength cuvette |
| Display | LCD |
| Output | USB Port&Parallel Port (Printer) |
| Power | 110/220VAC, 50/60Hz,80W |
| Dimension (L×W×H) | 490×360×210mm |
| Weight | 10kg |
