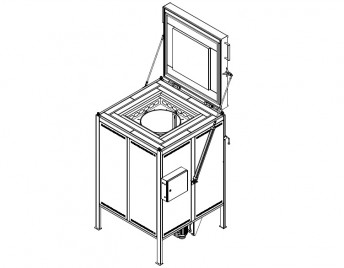

Special top loading electric oven SNOL 670/650 is designed for spring industry. It is also suitable for various thermal treatment processes up to 650°C, e.g. drying, preheating, normalization and other similar purposes.
BASIC MODEL
- Control box separately,
- Ventilation motors on the bottom,
- Reinforced bottom, max load 300kg,
- Heating from 4 sides, tubular heating elements (U shape),
- Metal retort Ø 630mm, deep 1150mm.
- Insulation with rock wool (complete lack of asbestos),
- Inside casing in 304 stainless steel,
- Outside casing in metal sheet, powder painting grey (RAL 7035), frame black,
- Door opening on the top,
- Door safety switch,
- OTP (over temperature protection),
- SSR relay.
OPTIONS
- Buzzer
- Timer (delayed start)
- Omron Touch screen
- Digital data recorder Eurotherm 6100E
- PC connection and software SNOL V2.0
- Door opens to the left,
- Additional shelves,
- Reinforces bottom for heavy loading,
- Removable bogie for convenient loading
