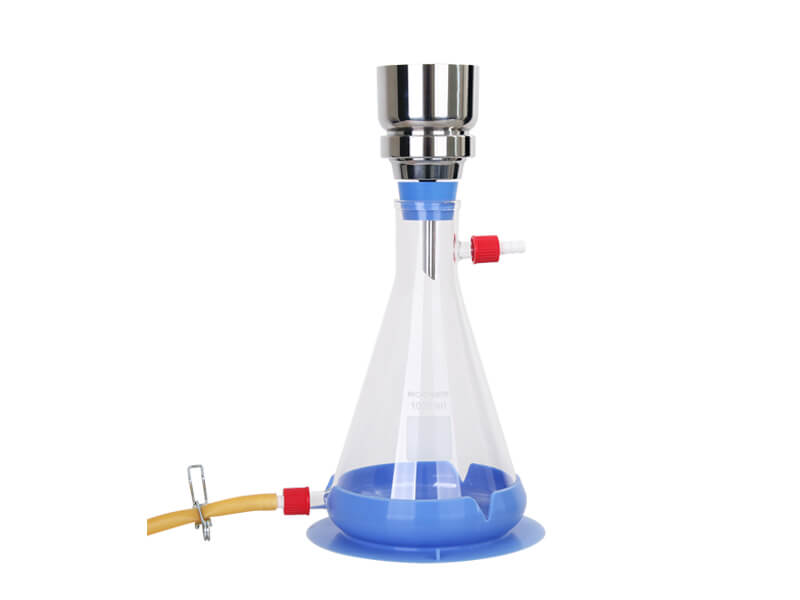

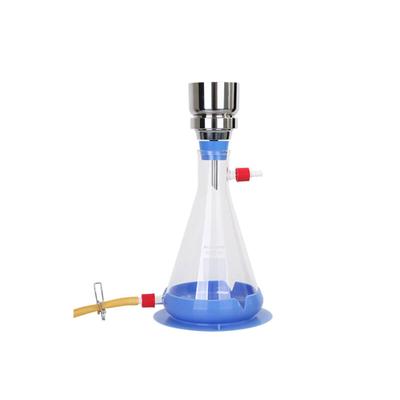

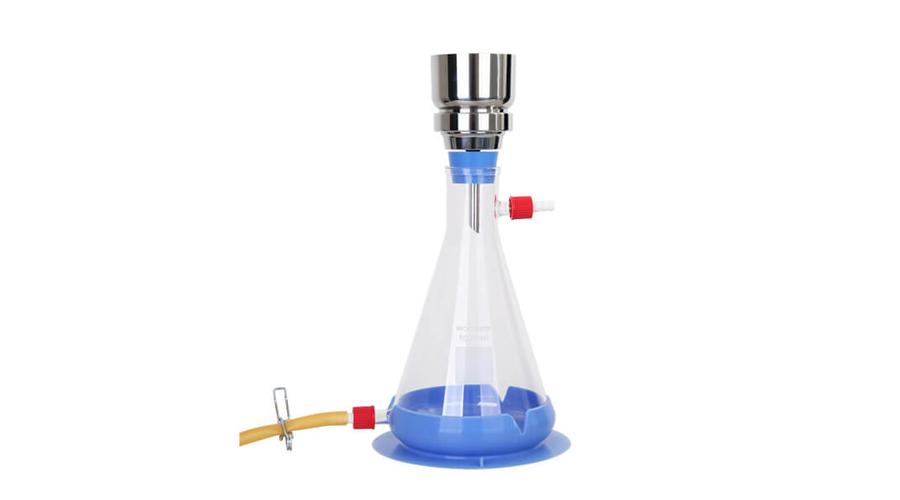

Filtration Apparatus Features:
◆ The filter holder is made of SS316
All parts of the filter holder are made of SS316, which can be fast sterilized by flame.
◆ The patented spin-lock design
The filter holder uses a patented spin-lock connection (M577346) giving a fast and stable installation without clamp.
◆ Drains the filtrate away directly without removing the tubes.
Filtration Apparatus Applications :
For filtration requiring the sterilization such as microbiology test.
Filtration Apparatus Ordering Information :
Complete Set Include :
◆ SF 1, 100 ml Stainless steel filter holder
◆ 1000 ml Receiver flask with drain
◆ Silicone fixing sucker
|Product Part Number||Product|
|◆ 167200-02||SF 11, 47 mm Stainless Steel Filtration Set|
|◆ 180100-10||SF 1, 100ml Stainless steel filter holder|
|◆ 167300-08||Receiver flask with drain, 1000 ml (with screwthread connector)|
|◆ 167200-45||Silicone fixing sucker|
◆ Funnel capacity：100 ml
◆ Flask capacity：1000 ml
◆ Filter diameter： 47 mm
◆ Hose barb : ID8
◆ Drain device : Yes
◆ Funnel – SS316
◆ Support base – SS316
◆ Membrane support – SS316
◆ Stopper – Silicone rubber (No.8)
◆ Receiver flask – Borosilicate glass
◆ Drain hose – Rubber (non-autoclavable)
