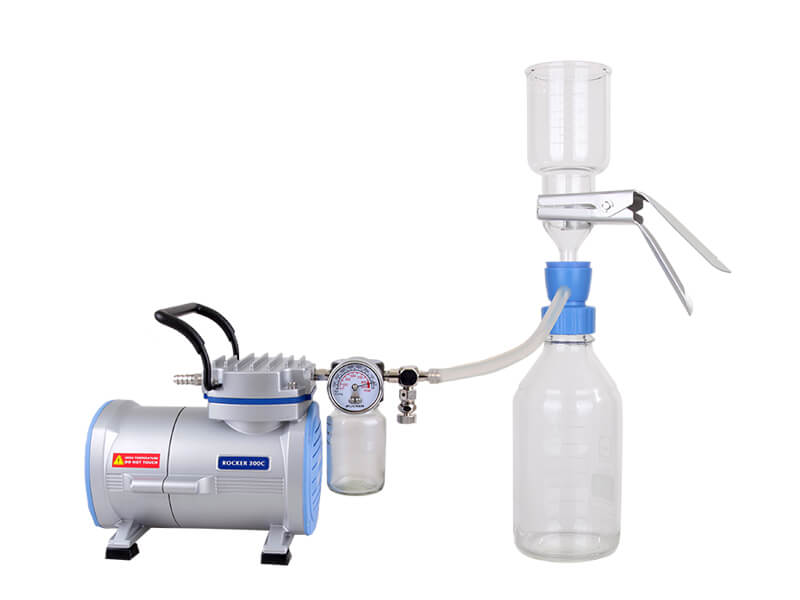

Filtration System for Solvent Features:
◆ No air pollution, maintenance free
Rocker 300C pump is driven by diaphragm, no need of lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Save Time
VF 12 can filtrate and store solution directly in GL45 storage bottle without the need of being transferred from the filtering flask.
◆ Suitable for all GL45 storage bottle
Unique filtration adaptor design can connect with GL45 storage bottle (1000ml, 2000ml, 5000ml…etc.)
Filtration System for Solvent Features:
◆ CE certification
◆ IP 30 protection (Rocker 300C)
◆ RoHS certification (Rocker 300C)
Filtration System for Solvent Applications :
Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.
Filtration System for Solvent Ordering Information :
| Product Part Number | Product |
| ◆ 189302-11(22) | Rocker 300C – VF 12, Solvent Purification System Complete Set Includes : ◆ Rocker 300C, PTFE Coated Chemical Resistant Vacuum Pump ◆ VF 12, Glass Filtration Set ◆ Silicone Tube (1m) |
| ◆ 189300-11(22) | Rocker 300C, PTFE Coated Chemical Resistant Vacuum Pump AC110V, 60Hz (AC220V, 50Hz) |
| ◆ 167200-12 | VF 12, Glass Filtration Set |
| ◆ 167120-31 | 300 ml Glass filter holder |
| ◆ 197000-59 | 1000 ml Glass storage bottle |
.
Rocker300C, PTFE Coated Chemical Resistant Vacuum Pump
| Specification (110V, 60Hz) ◆ Max. power：65W ◆ Max. current：0.7A ◆ Max. vacuum：99 mbar ◆ Max. flow rate：23 L/min ◆ Motor rotation speed：1750 RPM ◆ Horse power：1/8 HP ◆ Noise level：50 dB ◆ Hose barb：ID8 (5/16 inch) ◆ Vacuum Regulator：Yes ◆ Moisture Trap：Yes ◆ Thermal Protection：Yes ◆ Net weight：4.1 Kg ◆ Dimension (LxWxH)：28.5 x 13.5 x 20.4 cm |
Specification (220V, 50Hz) ◆ Max. power：60 W ◆ Max. current：0.3 A ◆ Max. vacuum：99 mbar ◆ Max. flow rate：20 L/min ◆ Motor rotation：1450 RPM ◆ Horse power：1/8 HP ◆ Noise level：50 dB ◆ Hose barb：ID8 (5/16 inch) ◆ Vacuum Regulator：Yes ◆ Moisture Trap：Yes ◆ Thermal Protection：Yes ◆ Net weight：4.1 Kg ◆ Dimension (LxWxH)：28.5 x 13.5 x 20.4 cm |
.
VF12, Glass Filtration Apparatus
| Material： ◆ Funnel – Borosilicate glass ◆ Support base – Borosilicate glass ◆ Membrane support – Sintered glass ◆ Clamp – Aluminum ◆ Stopper – Silicone rubber (No.8) ◆ Filtration adaptor – PP ◆ Storage bottle – Borosilicate glass |
Specification : ◆ Funnel capacity：300 ml ◆ Storage bottle capacity：1000 ml ◆ Filter diameter：47 mm ◆ Hose barb：ID8 (5/16 inch) |
