Multi-Branch Manifold System Features:
◆ For large number of samples
MultiVac 610-MS-A are economical models for large sample filtration. Each system includes Alligator 200 diaphragm liquid pump, manifold and magnetic filter holders.
◆ Time-saving and space-saving
The vacuum source has built in a liquid pump which can be connected directly to manifold without waste bottle. Save 40% bench space and simplify filtration process.
◆Light and handy aluminum design
The manifold is made of aluminum which is autoclavable, light and cost-effective.
◆ Magnetic filter holder is included
Magnetic filter holder allows one-handed operation and prevents the membrane from being twisted or torn.
Multi-Branch Manifold System International Certificates :
◆ CE certification
◆ IP 64 protection (Alligator 200)
◆ RoHS certification (Alligator 200)
Multi-Branch Manifold System Applications :
◆ Suspended solid test for water monitoring
◆ Microbiological test by Membrane Filter Technique
◆ General filtration without collecting filtrate

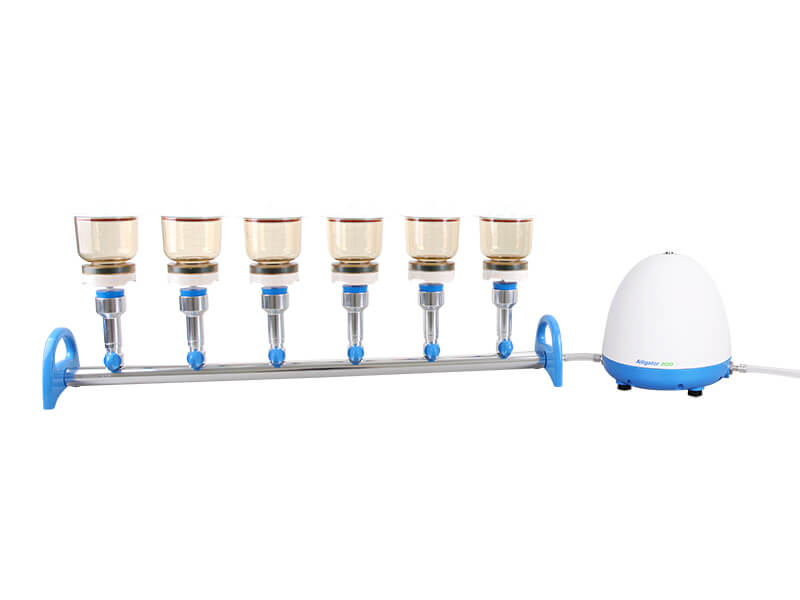

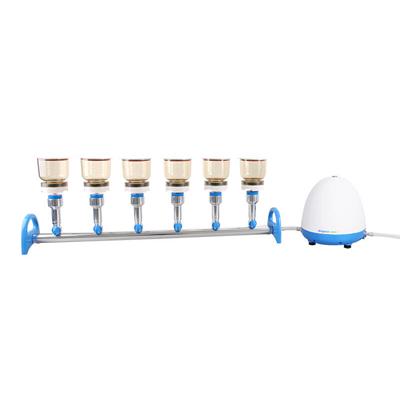

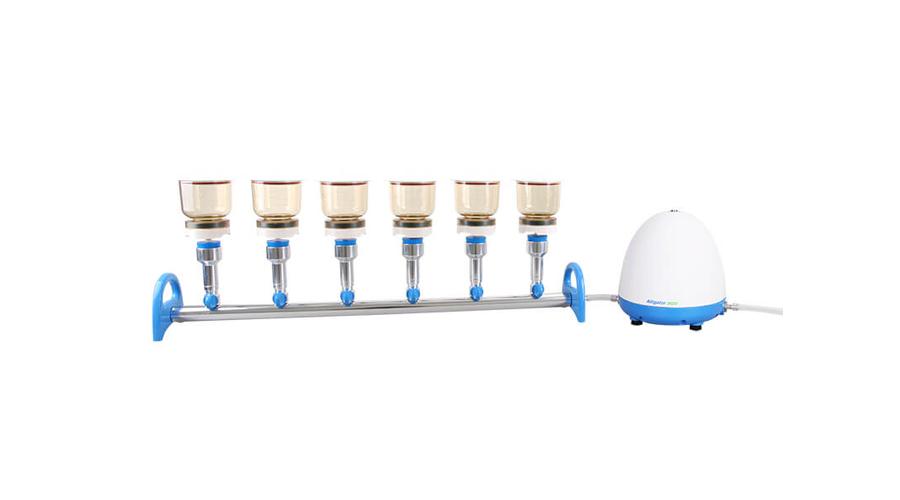

MultiVac610-MS-A complete system includes :
* Alligator 200, Diaphragm Liquid Pump
* MultiVac 610-MS, 6 Places Aluminum Manifold
* MF 3, 300 ml Magnetic Filter Holder (6 pcs)
* Silicone Tube (2 pcs)
Alligator 200, Diaphragm Liquid Pump
Specification
◆ Power：DC24V, 1.8A
◆ Max. vacuum：313 mbar
◆ Max. liquid flow rate：4.5 L/min
◆ Motor：60W Brushless DC Motor
◆ Hose barb：ID8 (5/16 inch)
◆ Material contact with filtrate：SS316, FKM, Silicone, PP, PPS
MultiVac 610-MS, 6 Places Aluminum Manifold
Specification
◆ Number of branch：6
◆ Filter diameter： 47 mm
◆ Material contact with filtrate：Aluminum
