Multi-Branch Manifold Features:
◆ Quick-assembly and disassembly
Each component can be removed easily by hand for cleaning and autoclaving to prevent biofilms and eliminates sources of contamination.
◆ SS316 stainless steel
All wetted parts of MultiVac 300-MS manifold are made of SS316 stainless steel, which is more durable.
◆ Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
◆ Innovative vent valve design
An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.
◆ Individual control valve
Each branch permits individual control.
◆ Compatible with different kinds of filter holders
MultiVac 300-MS manifold includes No. 8 silicone stoppers which can accept various types of filter holders at option.
Multi-Branch Manifold Applications :
◆ Microbiological test
◆ Suspended solid test
◆ Vacuum filtration

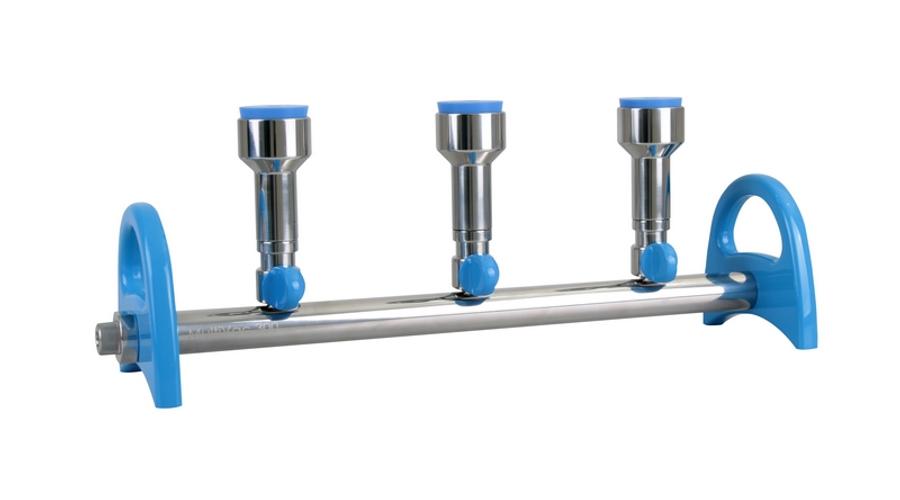

MultiVac300 Specification
◆ Number of branch：3
◆ Filter diameter：Optional
◆ Funnel capacity：Optional
◆ Hose barb： ID8 (5/16 inch)
◆ Dimension (LxWxH)：48 x 13 x 16 cm
Material
◆ Body：SS316
◆ Control valve：SS316
◆ Adaptor：SS316
◆ Hose barb / Vent Valve ：SS316
◆ Handle / Knob：Aluminum
