Leírás és Paraméterek

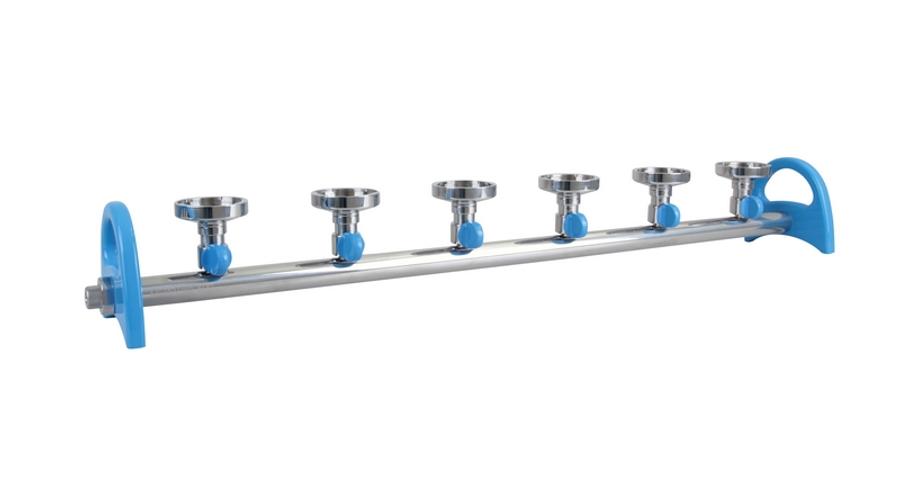

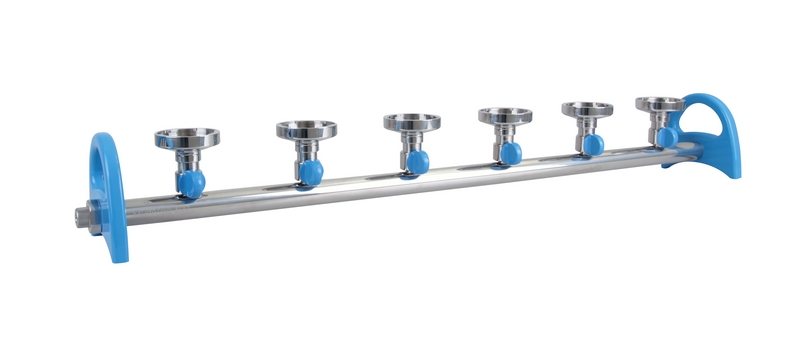

Multi-Branch Manifold Features:
◆ Quick-assembly and disassembly
Each component can be removed easily by hand for cleaning and autoclaving to prevent biofilms and eliminates sources of contamination.
◆ SS316 stainless steel
All wetted parts of MultiVac 600-MB manifold are made of SS316 stainless steel, which is more durable.
◆ Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
◆ Innovative vent valve design
An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.
◆ Individual control valve
Each branch permits individual control.
◆ Compatible with different sizes of funnels
MultiVac 600-MB manifold can accpet Rocker SF stainless steel funnel – 100 / 300 / 500 ml at option.
◆ Convertible funnel adaptor
Convertible funnel adaptor design allows user to fit their desired funnel (reusable or disposable) easily.
Multi-Branch Manifold Applications :
◆ Microbiological test
◆ Suspended solid test
◆ Vacuum filtration
MultiVac600 Specification
◆ Number of branch：6
◆ Filter diameter： 47 mm
◆ Funnel capacity： 100 ml / 300 ml / 500 ml (optional)
◆ Hose barb： ID8 (5/16 inch)
◆ Dimension (LxWxH)：85 x 13 x 11 cm
Material
◆ Body： SS316
◆ Control valve： SS316
◆ Adaptor： SS316
◆ Membrane support： SS316
◆ Hose barb / Vent valve： SS316
◆ Handle / Knob： Aluminum
