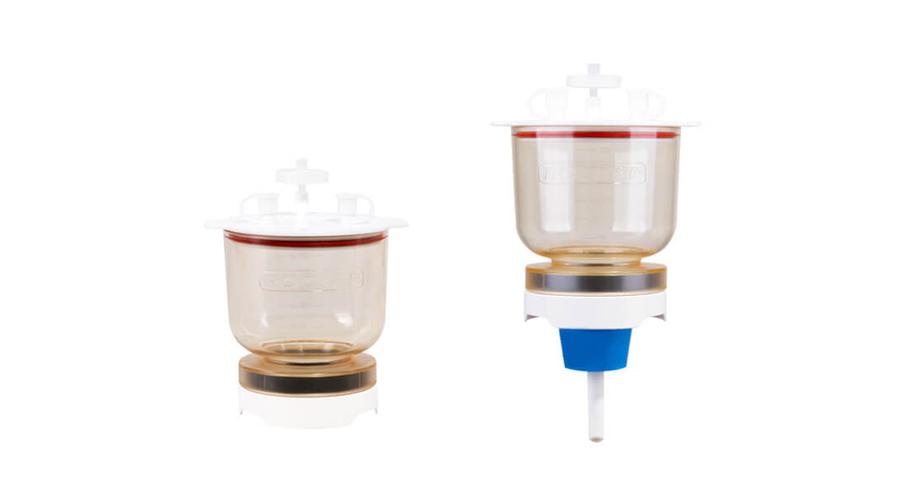

MF Magnetic Filter Holder Introduction:
Rocker MF series magnetic filter holders are designed with double-layer magnets to ensure a tight seal between the funnel and support base. The user-friendly design can allow one-handed operation and prevent possible twisting and tearing of the membrane.
Innovative design of a hose fitting detachable to the support base can allow a direct connection to vacuum source and a flexible use with various kinds of vacuum flask and bottle. Constructed of Polyether sulfone (PES) material, MF series filter holders can be resistant to a wide range of solvents, sturdy and autoclavable.
MF Magnetic Filter Holder Features :
◆ One to more
Compatible with various kinds of bottle, vacuum flask with or without side arm to collect filtrate directly.
◆ Easy to use
Strong magnetic seal allows one-handed operation, prevents possible twisting and tearing of the membrane. Membrane guide on the base helps position membrane easily.
◆ Safety
PES (Polyether sulfone) construction, resistant to a wide range of chemicals and high temperature, sturdy and unbreakable.
◆ Reusable
Withstands numerous autoclave cycles, save money and energy consumption
◆ Invention Patent
MF magnetic filter holder was awarded the United States (US 9.452.373B1), Taiwan (I551337) and China (ZL 2015 2 0050109.6) invention patent.
MF Magnetic Filter Holder International Certificate :
◆ RoHS certificate
MF Magnetic Filter Holder International Applications :
◆ Suspended Solid test filtration for municipal,surface, ground and drinking water
◆ Microbiology test filtration in food, pharmaceutical, beverage industries
◆ Medium purification in life science laboratory
◆ General filtration for aqueous sample
MF Magnetic Filter Holder International Ordering lnformation :
| Product Part Number | Product |
| ◆ 200300-01 | MF 3, 300ml Magnetic Filter Holder with lid kit |
| ◆ 200310-01 | MF 3a, 300ml Magnetic Filter Holder (short stem) with lid kit |
| ◆ 200300-36 | PP lid kit |
| ◆ 167110-16 | No. 8 Silicone stopper |
.
Specification
◆ Funnel Capacity：300 ml
◆ Filter Diameter： 47 mm
◆ Effective Filtration Area：13.1 cm²
◆ Syringe filter：25 mm, 0.2 μm
◆ Hose barb：ID4 ~ ID8
◆ Graduation increment：50 ml
Material
◆ Funnel：PES
◆ Support base：PES
◆ Membrane support：PES
◆ Funnel lid：PP
◆ Hose barb：PES
◆ Cap of lid：Silicone
◆ Syringe filter：PTFE
