Leírás és Paraméterek

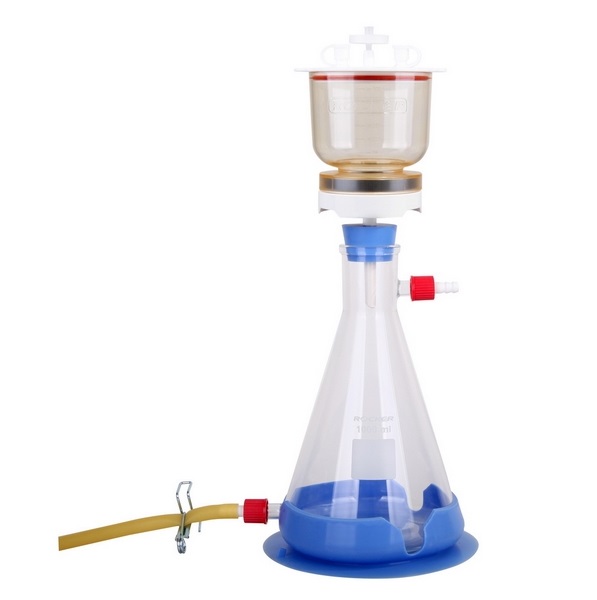

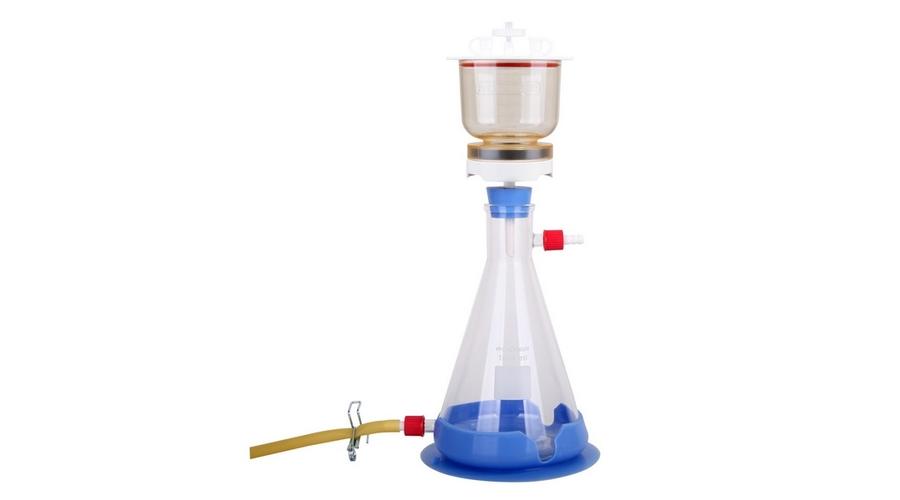

Filtration Apparatus Features :
◆ MF 31 strong magnetic seal allows one-handed operation
◆ Excellent smash, high temperature resistance and autoclavable.
◆ Funnel graduated in 50 ml, receiver in 100 ml increments for easy measurement.
Filtration Apparatus Applications :
◆ General filtration, such as microbiological test, suspended solid analysis etc.
Filtration Apparatus Ordering Information :
| Product Part Number | Product |
| 200320-31 | MF 31, 47 mm Filtration Set |
|
200300-01 ◆ 200300-36 |
MF 3, Magnetic filter holder (300 ml) includes: PP lid kit for Magnetic funnel PES magnetic funnel, 300 ml PES magnetic support base Silicone stopper (No.8) |
| 167300-08 | Receiver flask with drain, 1000 ml (with screwthread connector) |
| 167200-45 | Silicone fixing sucker |
.
| MF31 | Specification : |
| Funnel capacity： | 300 ml |
| Flask capacity： | 1000 ml |
| Filter diameter： | 47 mm |
| Effective filtration area： | 13.1 cm² |
| Hose barb： | 5/16 inch |
| Syringe filter : | 25 mm, 0.2 μm |
| Drain device : | Yes |
| Scale indication ： | 50 ml |
| Overflow protection： | No |
| MF31 | Material |
| Funnel | PES |
| Support base | PES |
| Membrane support | PES |
| Syringe filter | PTFE |
| Receiver flask | Borosilicate glass |
| Drain hose | Rubber (non-autoclavable) |
