Leírás és Paraméterek

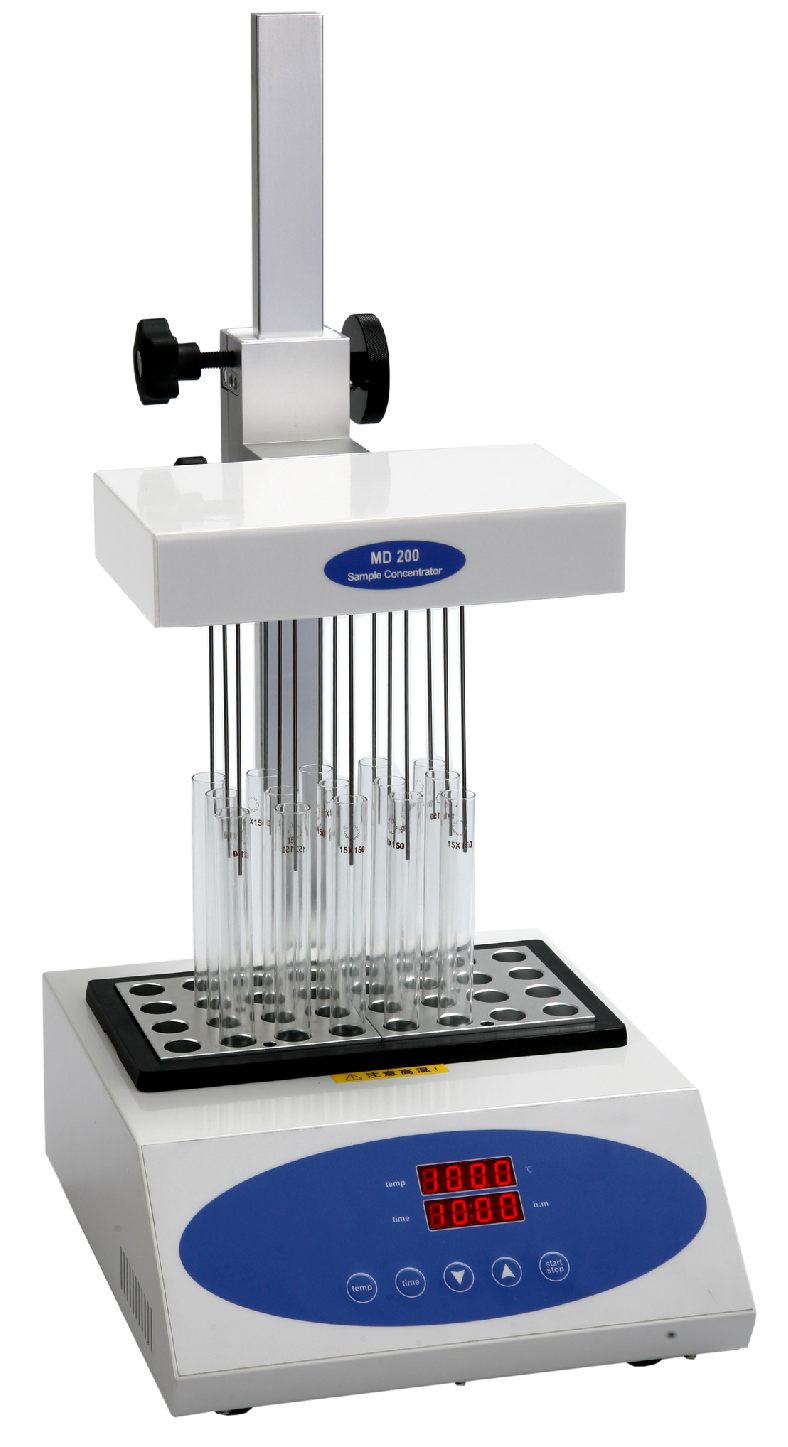

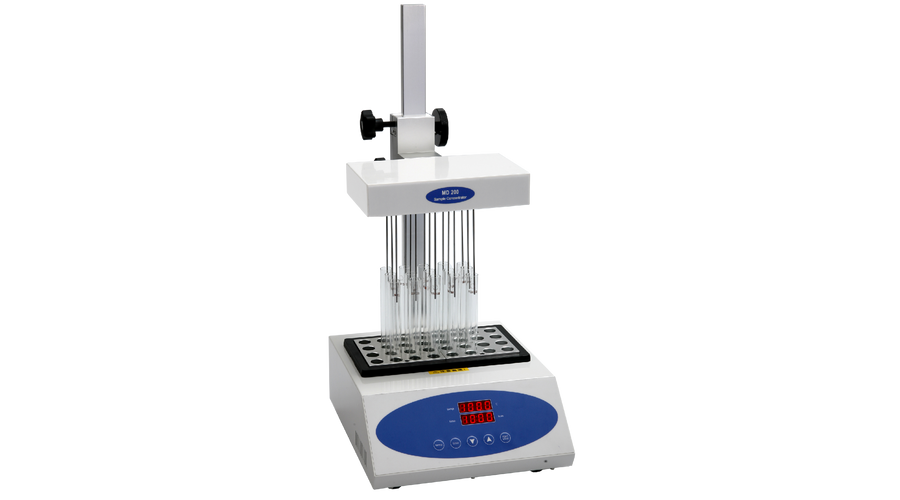

MD200-2 Sample Concentration
1. MD200-1/MD200-2 sample concertration consists of a base and stand assembly, sample holder and gas distribution system. Test tubes are held in a block. The gas at 5~10 psig passes through the distribution manifold.
2. Depending on the test-tube size and solvent volume they can be individually raised or lowered to the height. Needles or glass pipes blow gas onto the surface of the solution resulting in evaporation of the solvent.
Feature:
- High precision and wide range of temperature control
- Blowing a large number of samples at one time
- Blowing each sample independently
- Amount of airflow can be adjusted
- Easy operation; safe and reliable to use
- Low nitrogen consumption of 330ml/min/sample
Specification:
|
Model |
MD200-1 |
MD200-2 |
|
Temperature control range |
RT.+5°C~150°C |
RT.+5°C~150°C |
|
Timer |
1min~99h59min |
1min~99h59min |
|
Display |
LED |
LED |
|
Temp. control accuracy @40~100°C |
±0.5°C |
±0.5°C |
|
Temp. control accuracy @100~150°C |
±1°C |
±1°C |
|
Temp. accuracy for blocks @40°C |
±0.3°C |
±0.3°C |
|
Display accuracy |
0.1°C |
0.1°C |
|
Heating time(40~150°C) |
≤30min |
≤30min |
|
Standard blocks |
1 |
2 |
|
Nitrogen consumption |
0-15L/min |
0-15L/min |
|
Dimension(mm) |
280x240x500 |
280x240x500 |
|
Needle length |
150mm |
150mm |
.
Order Information:
|
Code |
Description |
|
AS-06070-00 |
MD200-2 AC220V/AC120V, 50/60Hz, 400W |
