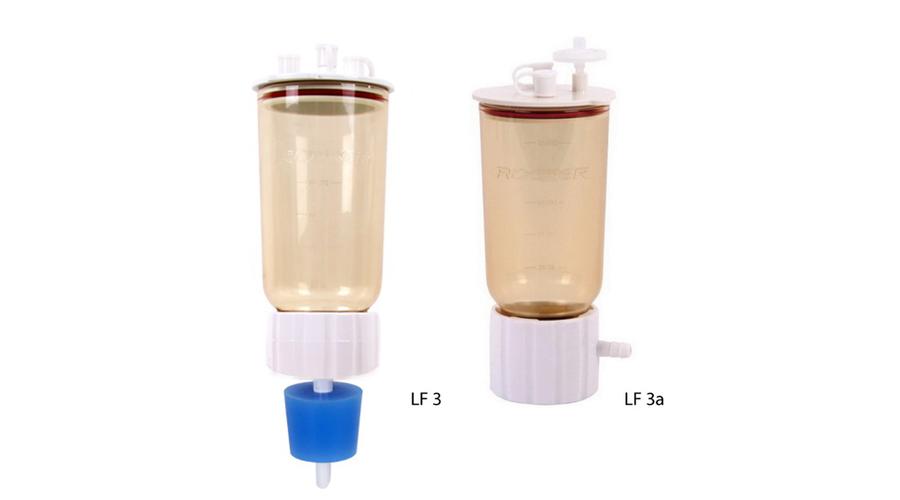

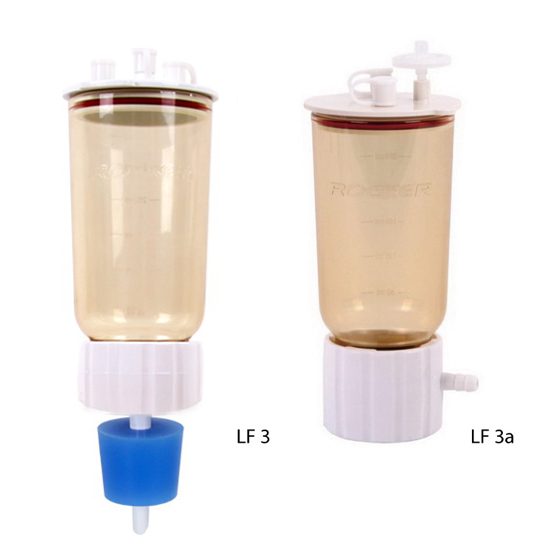

LF PES Filter Holder Features :
◆ Spin-lock connection(M381450) facilitates fast and stable installation without clamp.
◆ PES structure offers excellent smash, high temperature (180℃) resistance and autoclavable.
◆ Groove design on membrane support facilitates filtration speed.
◆ Reusable, friendly to the earth and save your money.
◆ Funnel graduated in 50 ml increments for easy measurement.
◆ LF 3 equips with No.8 stopper that allows it to fit other receiver flasks.
◆ LF 3a is available to fit any GL45 laboratory glass bottle.
LF PES Filter Holder Applications :
◆ General filtration
◆ Waste suction
LF PES Filter Holder Ordering Information :
| Product Part Number | Product |
| ◆ 197000-01 | LF 3, 47 mm PES Filter Holder |
| ◆ 197000-02 | LF 3a, 47 mm PES Filter Holder |
| ◆ 197000-36 | LF 3, PP lid kit |
| ◆ 197000-34 | PES funnel, 300 ml |
| ◆ 197000-35 | PC support base, for LF 3 / LF 5 |
| ◆ 197000-38 | Storage bottle adaptor, for LF 3a / LF 5a |
| ◆ 167110-16 | Silicone stopper (No. 8), for LF 3 / LF 5 |
Specification :
◆ Funnel capacity：300 ml
◆ Filter diameter：47 mm
◆ Effective filtration area：12.5 cm2
◆ Syringe filter：25 mm, 0.2 μm
◆ Hose barb：ID8 (LF 3a)
Material：
◆ Funnel – PES
◆ Support base – PC
◆ Membrane support – PP
◆ Funnel lid – PP
◆ Cap of lid – Silicone
◆ Syringe filter – PTFE
