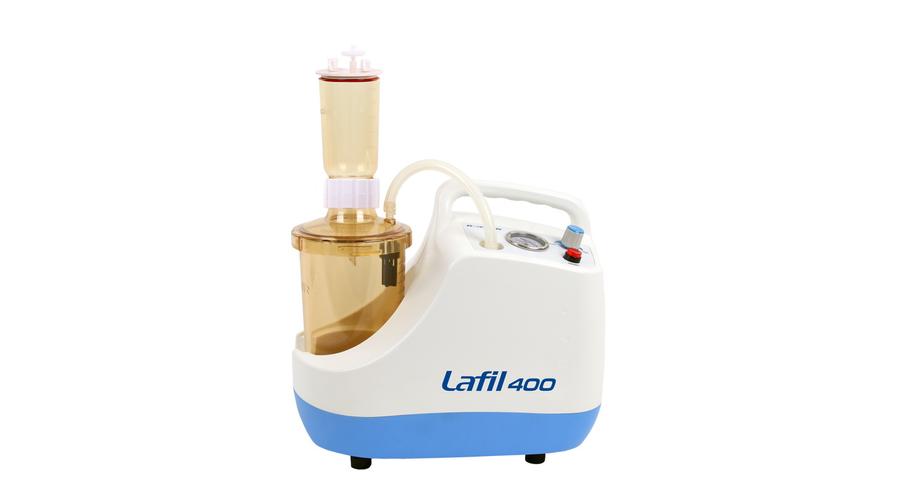

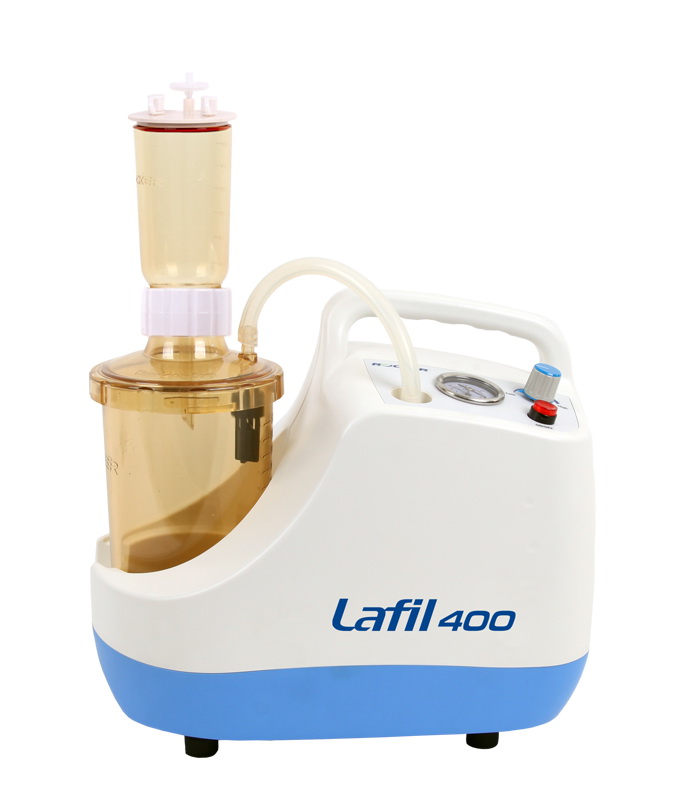

Lafil 400 - LF 30 szűrőrendszer

Filtration System Features:

◆ Compact and save space
Lafil 400 is an unique filtration system by combining vacuum source with filtration ware. Its compact design can save much bench space than the traditional ones.

◆ Safe operation
With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.

◆ The patented spin-lock design
The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.

◆ Overflow protection
The waste bottle comes with a built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.

◆ Autoclavable and shatterproof
The waste bottle and filter holder is made of engineering plastics which are shatterproof, high temperature resistance and autoclavable.

Filtration System International Certificate:

◆ CE certification

Filtration System Applications :

◆ Vacuum filtration
◆ Suspended solid test
◆ Microbiological test

Filtration System Ordering Information :

Lafil 400, Oil Free Vacuum Pump
Specification (110V, 60Hz)
◆ Max. power：100W
◆ Max. current：1.0A
◆ Max. vacuum：25 mbar
◆ Max. flow rate：23 L/min
◆ Motor roatation speed：1750 RPM
◆ Horse power：1/6 HP
◆ Noise level：52 dB
◆ Hose barb：ID8 (5/16 inch)
◆ Vacuum regulator：Yes
◆ Thermal protection：Yes
◆ Net weight：7.0 Kg
◆ Dimension (LxWxH)：33.5 x 24.5 x 30 cm

Specification (220V, 50Hz)
◆ Max. power：80W
◆ Max. current：0.4A
◆ Max. vacuum：30 mbar
◆ Max. flow rate：20 L/min
◆ Motor roatation speed：1450 RPM
◆ Horse power：1/6 HP
◆ Noise level：52 dB
◆ Hose barb：ID8 (5/16 inch)
◆ Vacuum regulator：Yes
◆ Thermal protection：Yes
◆ Net weight：7.0 Kg
◆ Dimension (LxWxH)：33.5 x 24.5 x 30 cm

LF 30, PES Filtration Apparatus
Material：
◆ Funnel – PES
◆ Support base – PC
◆ Membrane support – PP
◆ Receiver bottle – PC
◆ Syringe filter – PTFE

Specification：
◆ Funnel capacity：300 ml
◆ Waste bottle capacity：1200 ml
◆ Filter diameter：47 mm
◆ Hose barb：ID8 (5/16 inch)
◆ Overflow protection：Yes
