Leírás és Paraméterek

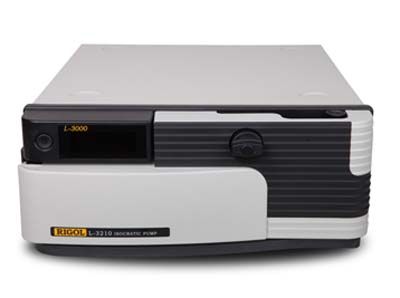

Designed & developed by RIGOL’s patented technology, and manufactured through advanced processing, L-3210 isocratic pump owns world-class performance parameters: 9000 PSI operating pressure, excellent flowrate accuracy and precision.
Besides, L-3210 is with high durability and can fully meet general QA/QC requirements.
An isocratic pump competent for general QA/QC use, stale and easy to use,
as well as lower cost for run & maintenance .
► Max. pressure limit 9000PSI，
A higher pressure limit allows a wider flexible range of chromatographic separation conditions and higher efficiency.
► Proprietary pulsation dampening technology keeps the pressure pulsation under 10PSI,
resulting in a better qualitative reproducibility.
► High stability and durability, a longer service life.
► Online wash for piston rod can effectively extends the service life of sealing parts.
Co-works with L-3100 solvent organizer.
► Product Specification
|
Pump
|
|
L-3210 Isocratic Pump
|
L-3220 Binary Pump
|
L-3240 Quarternary Pump
|
|
|
Flowrate Range
|
0.01 mL/min -10.000 mL/min (increment 0.001mL/min)
|
||
|
Flowrate Accuracy
|
±0.5% (@1mL/min，water）
|
|||
|
Flowrate Precision
|
≤0.1% (@1mL/min，water) (JJG)
≤0.07% RSD (@1mL/min，water) (ASTM) |
|||
|
Pressure Limit
|
9,000 PSI (@0-2mL/min)
6,000 PSI (@2-5mL/min) 3,000 PSI (@5-10mL/min) |
|||
|
Pressure Pulsation
|
≤1% (@1mL/min,water,back pressure>10Mpa)
|
|||
| Gradient Accuracy | N/A | ±0.5% | ||
|
Gradient Reproducibility
|
≤0.15% RSD
|
≤0.15% RSD
|
||
|
Weight
|
17 Kg
|
22 Kg
|
18 Kg
|
|
|
Size
|
462 mm(D)×367 mm(W)×143(H)mm
|
|||
|
Power supply
|
100 VAC - 240 VAC， 50/60 Hz, 150Wmax
|
|||
