Leírás és Paraméterek

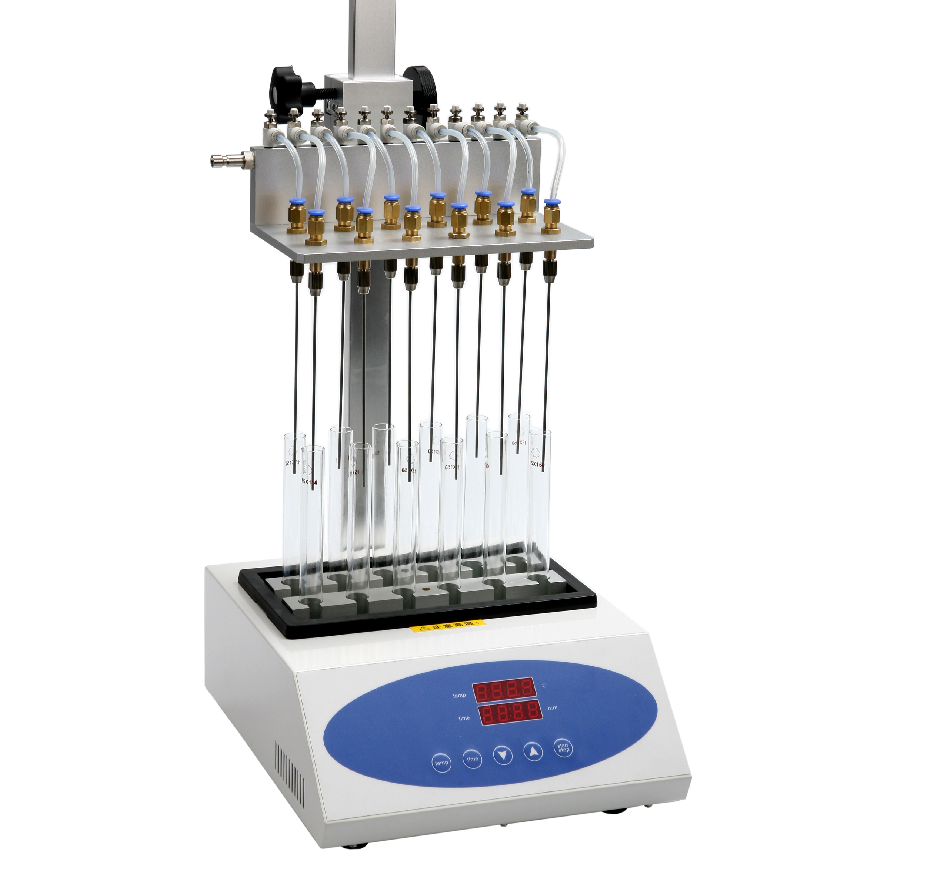

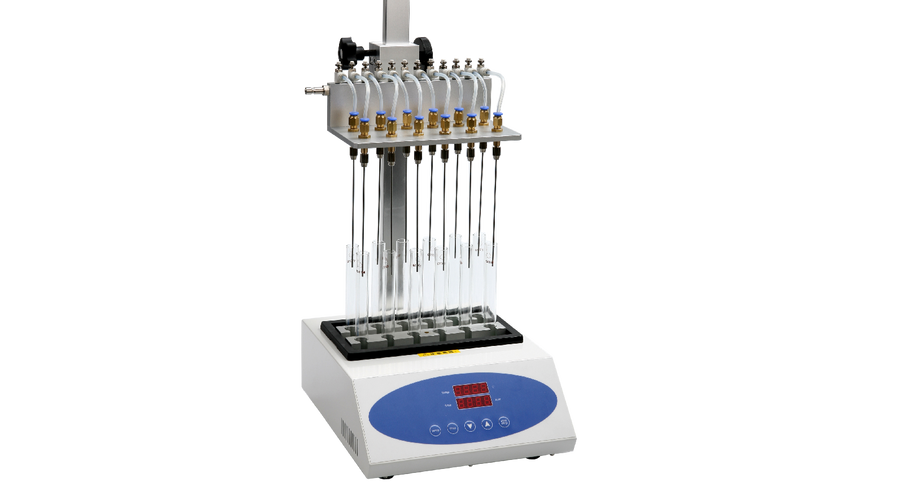

KD200 Sample Concentration
1. KD200 sample concertration consists of a base and stand assembly, sample holder and gas distribution system. Test tubes are held in a block. The gas at 5~10 psig passes through the distribution manifold.
2. Depending on the test-tube size and solvent volume they can be individually raised or lowered to the height. Needles or glass pipes blow gas onto the surface of the solution resulting in evaporation of the solvent.
Feature:
- Professionally-designed block, tester can be observed at the surface location of concentrated samples
- Depending on the test-tube size and solvent volume they can be individually raised or lowered to the height
- Easy operation; safe and reliable to use
Specification:
|
Model |
KD200 |
|
Temperature control range |
RT.+5°C~150°C |
|
Temperature control discrepancy |
≤1°C (RT.+5°C~100°C) |
|
Heating time (from 40°C to 150°C) |
≤30min |
|
Timer range |
1min~99h59min |
|
Maximum input power |
400W |
|
Temp. control discrepancy |
0.1°C |
|
Needle length |
150mm |
|
Capacity |
12pcs |
|
Dimension |
280x240x500mm |
Order Information:
|
Code |
Description |
|
AS-06090-00 |
KD200 AC220V or AC120V, 50/60 Hz, 400W |
|
AS-06081-01 |
150mm Needles |
