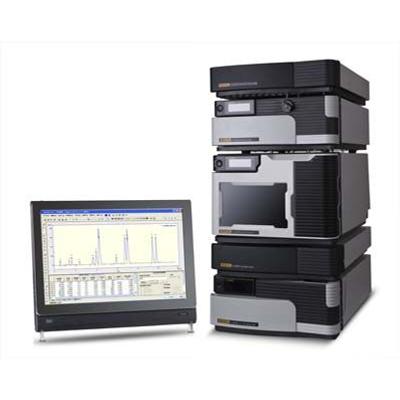

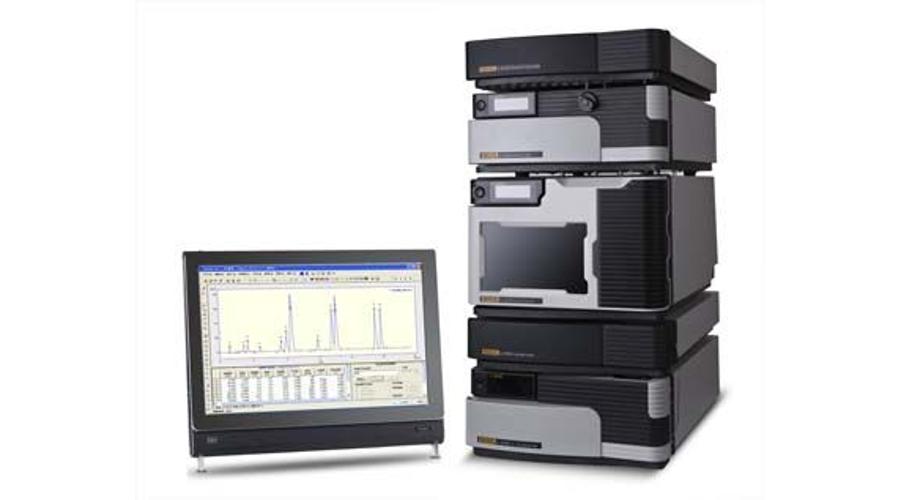

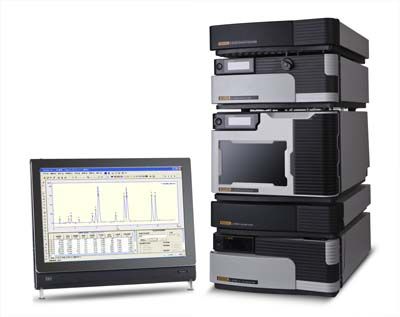

HPLC L-3000 Binary gradient A-S Pump / Binary gradient M-S Pump / Quarternary gradient A-S Pump / Quarternary gradient M-S Pump

Ajánlatkérés
Cikkszám: Rigol HPLC L-3000 Binary gradient A-S Pump / Binary gradient M-S Pump / Quarternary gradient A-S Pump / Quarternary gradient M-S
Gyártó: Rittung - Rigol Technologies, Inc.

Leírás és Paraméterek


Delivery Pump Binary Pump Binary Pump
Online Degasser 2-channel(optional) 2-channel(optional)
Solvent Organizer Standard Configuration                                         Standard Configuration
Detector UV-VIS Detector UV-VIS Detector
Sampler Auto sampler Manual Injector
Column Oven Optional Optional
Qualitive Reproducibility ≤0.2% RSD ≤0.2% RSD
Quantitative Reproducibility ≤0.5% RSD (UV-VIS Detector）
≤3% RSD (ELSD）		 ≤0.5% RSD (UV-VIS Detector）
≤3% RSD (ELSD）
Dectection Limit 5 ×10-9g/mL 5 ×10-9g/mL
Flowrate Range 0.01 mL/min -10.000 mL/min
(increment 0.001mL/min)          		 0.01 mL/min -10.000 mL/min
(increment 0.001mL/min)
Flowrate Accuracy ±0.5% ±0.5%
Flowrate precision ≤0.070%RSD ≤0.070%RSD
Pressure Limit 8000PSI 8000PSI
Pressure Pulsation

≤1%
(@1mL/min,water,

backpressure>10Mpa)

≤1%
(@1mL/min,water,

backpressure>10Mpa)
Gradient Accuracy ±0.5% ±0.5%
Gradient Reproducibility ≤0.15% RSD ≤0.15% RSD
Spectral Bandwidth 8nm 8nm
Wavelength Accuracy ±1nm ±1nm
Wavelength Precision 0.2nm 0.2nm
Noise ±0.5 ×10-5 AU ±0.5 ×10-5 AU
Drift 1×10-4AU/Hr 1×10-4AU/Hr
Linear Range >5×104 (JJG)
>2.5AU (ASTM)		 >5×104 (JJG)
>2.5AU (ASTM)
Highest Sampling Rate 100Hz 100Hz
Flowcell Pressure Resistance 1200 PSI 1200 PSI
Flowcell Light Path 10mm 10mm
Flowcell Volume 12μL 12μL
Chromatographic
Workstation		 RIGOL CWS RIGOL CWS


------------


Delivery Pump Quarternary Pump Quarternary Pump
Online Degasser 4-channel(optional) 4-channel(optional)
Solvent Organizer Standard Configuration Standard Configuration
Detector UV-VIS Detector UV-VIS Detector
Sampler Auto sampler Manual Injector
Column Oven Optional Optional
Qualitive Reproducibility ≤0.2% RSD ≤0.2% RSD
Quantitative Reproducibility ≤0.5% RSD (UV-VIS Detector）
≤3% RSD (ELSD）		 ≤0.5% RSD (UV-VIS Detector）
≤3% RSD (ELSD）
Dectection Limit 5 ×10-9g/mL 5 ×10-9g/mL
Flowrate Range 0.01 mL/min -10.000 mL/min
(increment 0.001mL/min)		 0.01 mL/min -10.000 mL/min
(increment 0.001mL/min)
Flowrate Accuracy ±0.5% ±0.5%
Flowrate precision ≤0.070%RSD ≤0.070%RSD
Pressure Limit 8000PSI 8000PSI
Pressure Pulsation ≤1%
(@1mL/min,water,backpressure>10Mpa)		 ≤1%
(@1mL/min,water,backpressure>10Mpa)
Gradient Accuracy ±0.5% ±0.5%
Gradient Reproducibility ≤0.15% RSD ≤0.15% RSD
Spectral Bandwidth 8nm 8nm
Wavelength Accuracy ±1nm ±1nm
Wavelength Precision 0.2nm 0.2nm
Noise ±0.5 ×10-5 AU ±0.5 ×10-5 AU
Drift 1×10-4AU/Hr 1×10-4AU/Hr
Linear Range >5×104 (JJG)
>2.5AU (ASTM)		 >5×104 (JJG)
>2.5AU (ASTM)
Highest Sampling Rate 100Hz 100Hz
Flowcell Pressure Resistance 1200 PSI 1200 PSI
Flowcell Light Path 10mm 10mm
Flowcell Volume 12μL 12μL
Chromatographic
Workstation		 RIGOL CWS RIGOL CWS
