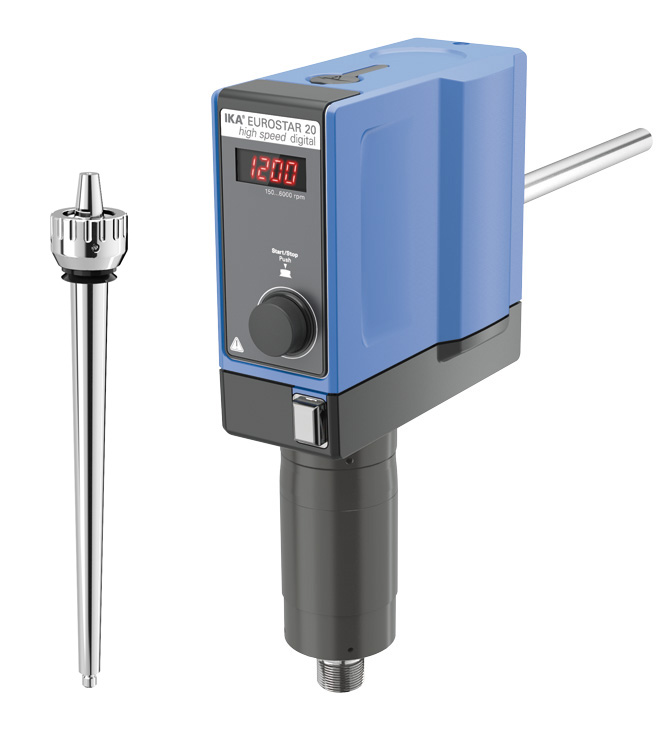

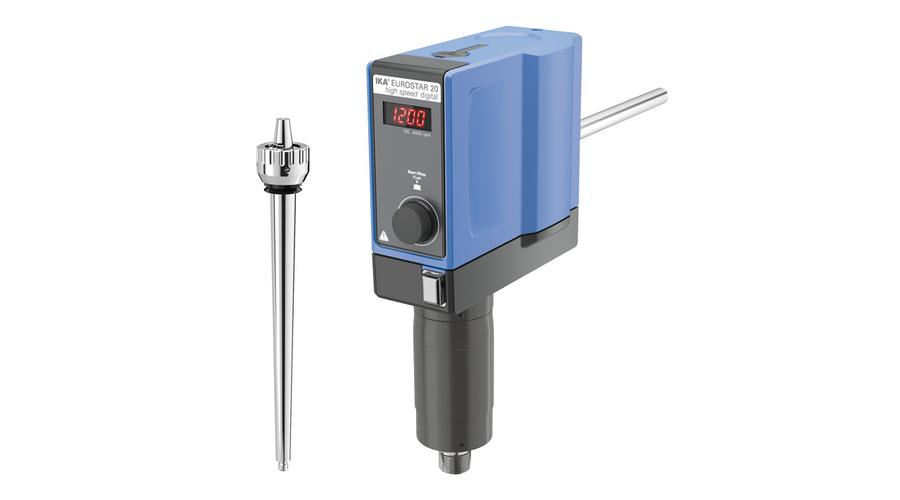

High speed laboratory stirrer designed for intensive stirring tasks for quantities up to 20 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. The included precision shaft is 280 mm long and has a maximum immersion depth of 220 mm.
- Digital speed display
- Infinitely adjustable speed
- Cone seat for precision shaft
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
Technical data:
| Stirring quantity max. (H2O) | 20 l |
| Motor rating input | 176 W |
| Motor rating output | 125 W |
| Motor principle | Brushless DC |
| Speed display | TFT |
| Speed range | 0/150 - 6000 rpm |
| Reversible direction of rotation | no |
| Intermittent operation | yes |
| Viscosity max. | 10000 mPas |
| Output max. at stirring shaft | 125 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 20 Ncm |
| Speed control | stepless |
| Setting accuracy speed | 1 ±rpm |
| deviation of speed measurement n > 300rpm | 3 ±rpm |
| deviation of speed measurement n < 300rpm | 1 ±% |
| Stirring element fastening | special output shaft |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Hollow shaft (push-through ¿ when stopped) | no |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Torque display | yes |
| Nominal torque | 0.2 Nm |
| Torque measurement | trend |
| deviation of torque measurement I | 6 ±Ncm |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 - 6000 min |
| Temperature measuring range min. | -10 °C |
| Temperature measuring range max. | +350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) K |
| housing material | alu-cast coating / thermoplastic polymer |
| clean room qualified | no |
| explosion proofed | no |
| communication distance (depend onbuilding) max. | 150 m |
| Dimensions (W x H x D) | 86 x 325 x 230 mm |
| Weight | 4.7 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | yes |
| USB interface | yes |
| Analog output | no |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 176 W |
