Leírás és Paraméterek

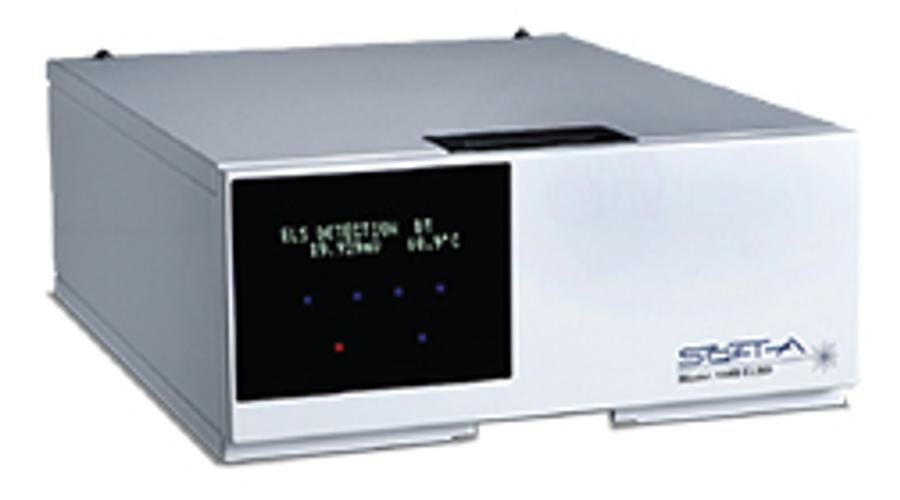

1300 ELS Detektor
| Felhasználási terület: | Kutatás |
| Használati paraméterek: | ChemStation vezérlés, 4 gombos vezérlés |
| Kompatibilitás: | Minden oldószerhez és áramlási sebességhez |
| Érzékenység: | Nagy érzékenység |
Improved sensitivity in a stackable module
Improved sensitivity in a stackable module, the SofTA 1300 integrates UPLC capability into a package compatible with a typical HPLC or UPLC modular system. Its rugged horizontal package has the strength to be placed anywhere in your component stack. This stackability allows it to be located next to the column outlet, minimizing peak dispersion to attain the highest possible resolution. When it comes time to perform a routine maintenance procedure, the system can be slid out of its housing from the front, preventing any disruption to the remaining components in the system.
Standard Features
- Maximize sensitivity with a quantitative dynamic range of over 3 orders of magnitude
- Save space by installing with stacked module HPLC Systems
- Service unit easily with an “in place” pull out tray
| SofTA 1300 | |
| Dimensions | 6.3 x 13.8 x 17.2 in |
| (16 x 35.1 x 43.7 cm) | |
| Weight | 46 lbs (20.9 kg) |
| Evaporative Zone Temperature | Ambient to 120 °C |
| Thermo-Split Chamber Temperature | 10 to 60 °C |
| Liquid Flow Rate | 0.2 to 5.0 mL/min |
| Gas Requirements | 65 ± 5 psi Nitrogen or other inert gas |
| Gas Consumption | Approx. 3 SLPM |
