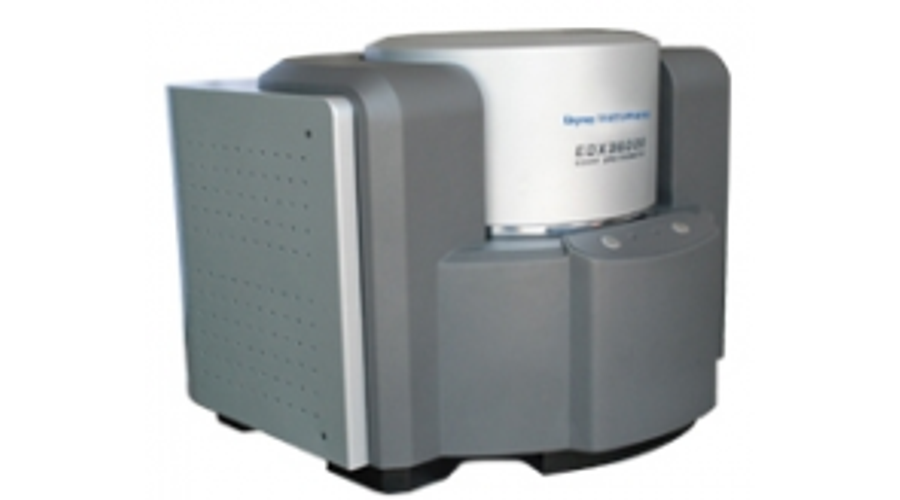

EDX3600B Full-element Specialist

EDX3600B Full-element Specialist Katt rá a felnagyításhoz
Cikkszám: SKYRAY EDX3600B Full-element Specialist
Gyártó: Skyray Instrument Co., Ltd.
Elérhetőség: Előrendelhető

Leírás és Paraméterek

EDX3600B X-ray Fluorescence spectrometer uses XRF technology for rapid and accurate elemental analysis of cement and steel. The technology features low-energy X-rays with good excitation results of light elements such as Si, S, Na and Mg. Plus, the test time is short and test efficiency is greatly improved. The instrument is equipped with UHRD detector as well, which leads to good energy linearity, energy resolution, spectrum property and high peak-background ratio. Due to automatic spectrum stabilizing device, the instrument is in great consistency. As spectrum decoupling technique is used, the original spectrum can be easily decoupled, and the measured analytical precision of light elements of Si, S, Al, etc is the same. Owing to multi-parameter linear regression method, the absorption and enhancement effects between elements are significantly reduced.

Performance characteristics

Deliver professional full-element analysis of cement, steel, minerals, plating thickness and hazardous elements (RoHS).
In-built SNE improves the signal processing ability up to 25 times.
The collimators and filters can be switched automatically for different samples.
Electric-cooling UHRD detector instead of liquid nitrogen cooling detector
Intelligent full-element analysis software matches with the hardware well.

Technical specifications

Measurable elements: Na to U
Range of element content: 1ppm-99.99%
Ability of simultaneous analysis: 24 elements
Plating thickness measurement: more than 11 layers, up to 0.005μm each layer
Analysis accuracy: 0.05%
Forms of samples: powder, solid and liquid
Measurement time: 60s—200s
Energy resolution: (150±5)eV
Tube voltage: 5KV—50KV
Tube current: 50uA—1000uA

Standard configurations

Electric-cooling UHRD detector
Signal-to-Noise Enhancer (SNE)
Light path enhancement system
In-built high resolution CCD
Automatic collimator and filter switch
Precise mobile platform
Enhanced metal sensitivity analyzer
