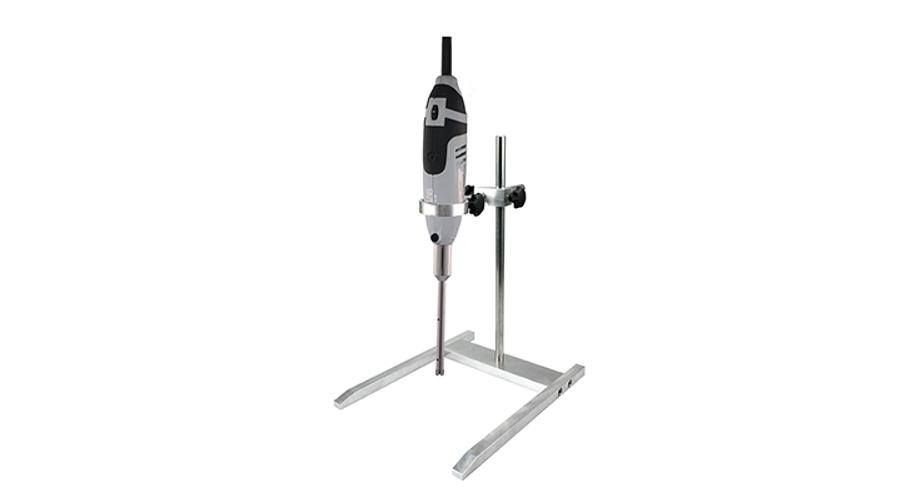

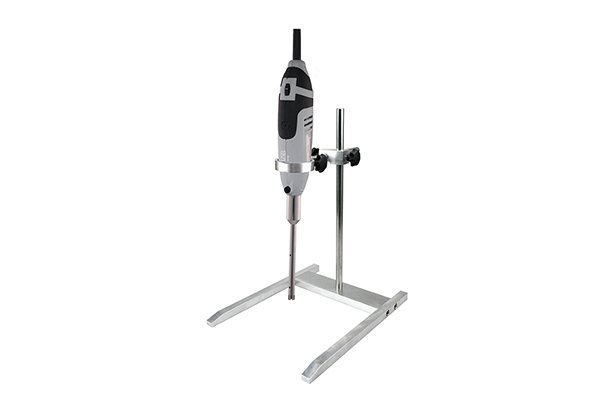

DLAB D160 Homogenizátor

DLAB D160 Homogenizátor Katt rá a felnagyításhoz
Cikkszám: DLAB D160
Gyártó: DLAB. Instruments Ltd.
Elérhetőség: Előrendelhető

Leírás és Paraméterek



D160 Homogenizer:

D160 Homogenizer can rapidly homogenize, disperse, and emulsify samples in 0.1-50ml of liquid or 1-250ml depending on the generating probe. During operation, the suspended material is drawn into the core of the homogenizer by a rotor turning at up to 30,000rpm. The material is repeatedly cycled through narrow slits in the probe where it is rapidly sheared and disintegrated by high shear. Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is usually achieved in a few seconds. Little, if any, heat is produced during the process.

D160 Homogenizer Features:

  • Ideal for mixing, emulsification, shredding, or chopping
  • Practical answer for small samples
  • Saw Tooth generators for tissue homogenization available
  • Easy to hold and light weight for one hand operation
  • Generators are made of 316L Stainless Steel with PTFE bushings
  • Autoclavable stainless steel shafts. Inert to aggressive solutions
  • All shafts are interchangeable shafts and are easily removed for cleanup
  • High speed motor. Speed control from 8,000 to 30,000 rpm
  • Suitable for solvents & abrasive substances
  • 1 YEAR WARRANTY

D160 Homogenizer Specifications:



Speed range : 8,000-30,000rpm
Sample volume range : 0.1 - 250ml
Speed control : 6 position control dial
Motor type : Universal motor, 130 Watt
pH range : 2-13
Fineness : Suspensions & Emulsion 10-15 & 1-10um
Noise emission : < 54 dB(A) at 30,000 rpm
Dimensions : 2.5L x 2.5W x 8H inches (drive only)
Weight : 18lbs (with stand) 1.5lbs (drive only)
Voltage : 110Volts, 60Hz


D160 Homogenizer Ordering Information:

Cat. No.   Description
85010101     D160 Homogenizer Package - Drive Motor, DS-160/5 5mm dia. generator, flat head-open slot, 50mm immerse length, H-370 stand, for solid/liquid media, volumes 0.1-50ml, 110V, 60Hz
85010201 : D160 Homogenizer Package -Drive Motor, DS-160/10 10mm dia. generator, flat head-open slot, 115mm immerse length, H-370 stand, for solid/liquid media, volumes 1- 250ml, 110V, 60Hz
85010301 : D160 Homogenizer Drive Motor, 110V/60Hz



D160 Homogenizer Accessories:





Saw Tooth Generator Accessory



Cat. No.   Description
18900113   :   DS-160/5 Dia 5mm x L 50mm generator probe for D-160, for solid/liquid media, volumes 0.1-50ml 18900113_DS-1605.jpg
18900114 : DS-160/10 Dia 10mm x L 120mm generator probe for D-160, for solid/liquid media, volumes 1- 250ml 18900114_DS-16010.jpg
18902001 : DS-160/T5 Dia 5mm x L 50mm saw-tooth generator probe for D-160, for tissue, volumes 0.1-50ml 18900113_DS-1605.jpg
18902002 : DS-160/T7 Dia 7mm x L 130mm saw-tooth generator probe for D-160, for tissue, volumes 1-50ml 18900114_DS-16010.jpg
18902003 : DS-160/T10 Dia 10mm x L 115mm saw tooth generator probe for D-160, for tissue, volumes 1-250ml 18900114_DS-16010.jpg
18902004 : DS-160/T14 Dia 14mm x L 130mm saw tooth generator probe for D-160, for tissue, volumes 100-1000ml 18900114_DS-16010.jpg
85010401 : H-370 Homogenizer Stand 85010401-D160 stand.jpg
